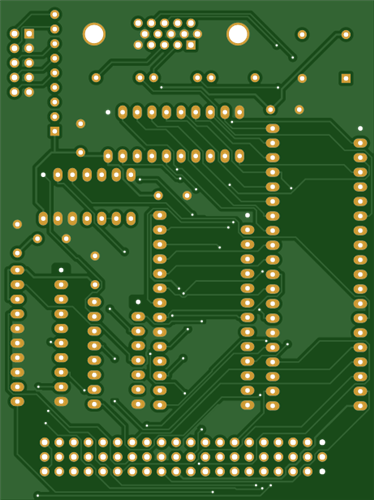

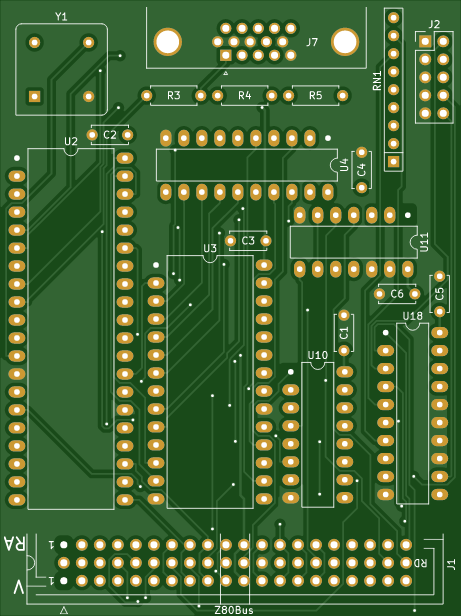

Z80Bus VDU EF9345 Prototype
Z80Bus VDU with EF9345.
Select base IO with J2.
This is without scandoubler so 15KHz VGA out.
