Z80 CF / Pio Module
Z80Bus module for CF and PIO.
27/05/26 Updated the gerber and schematic. The 74ls08 is not needed for the PIO. Z80 /M1 should be directly connected to the /M1 of the PIO

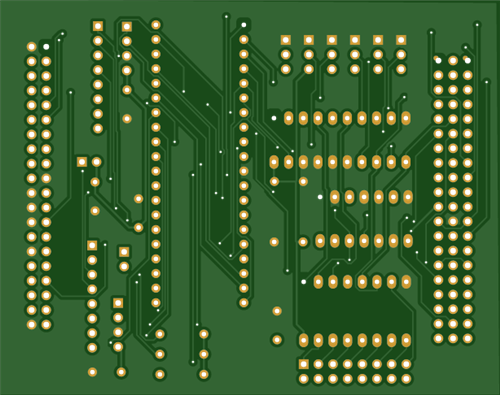

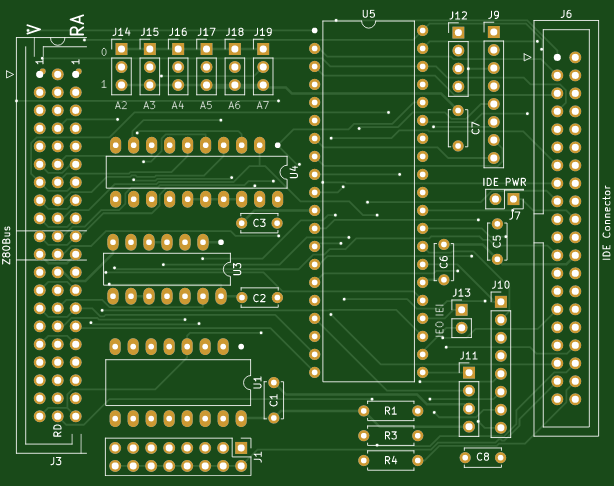

J1 place 1 jumper to select the IO address of the CF-IDE connect
| Y0 | 80h–87h |
| Y1 | 88h–8Fh |
| Y2 | 90h–97h |
| Y3 | 98h–9Fh |
| Y4 | A0h–A7h |
| Y5 | A8h–AFh |
| Y6 | B0h–B7h |
| Y7 | B8h–BFh |
J7 place a jumper if your CF card supports power on pin 20.
J9 PIO A
1 - PA0
2 - PA1
3 - PA2
4 - PA3
5 - PA4
6 - PA5
7 - PA6
8 - PA7
J10 PIO B
1 - PB0
2 - PB1
3 - PB2
4 - PB3
5 - PB4
6 - PB5
7 - PB6
8 - PB7
J11 PIO B
1 - BRDY
2 - /BSTB
3 - GND
4 - VCC
J12 PIO A
1 - ARDY
2 - /ASTB
3 - GND
4 - VCC
J13
1 IEI - Interrupt Enable In. If no other has Interrupt Enabled connect to VCC
2 IEO - Interrupt Enable Out
J14-J19 Select Address for PIO
