Super Nintendo Famicom SNES controller to Atari / Commodore / Amiga / Sega Megadrive Genesis
Super Nintendo Famicom SNES controller to Atari / Commodore / Amiga / Sega Megadrive Genesis

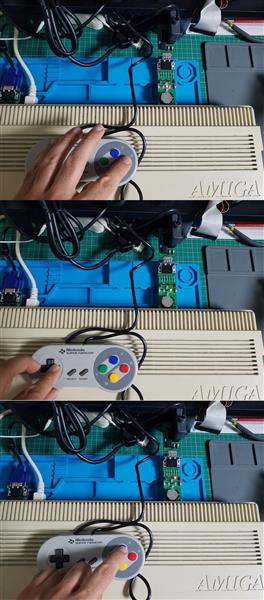

SNES controller can be used on computers and consoles of the 80s-90s.
The circuit is supplied by 5V and the current consumption is < 20mA.
BOM list: https://www.digikey.com/en/mylists/list/BAZHMJRGQN
Additional items to make your adapter:
https://www.aliexpress.com/item/4000281809514.html?spm=a2g0s.9042311.0.0.74844c4d8RoLg7
Commodore and Atari require both slide switches at position 1.
Megadrive require both slide switches at position 2.
A wrong selection will damage your machine!
Please note that Amiga CD32 is not supported.
Autofire runs on the first button only. C64 is a single button selection.
Sega Megadrive requires the female D-Sub9 trimmed with a Dremel tool to fit the joy port.
Thanks to Raphael Assenat for the firmware explanation.
