Commodore AMIGA LED 500 600 1200 2000 status board multi system for debugging and troubleshooting hardware

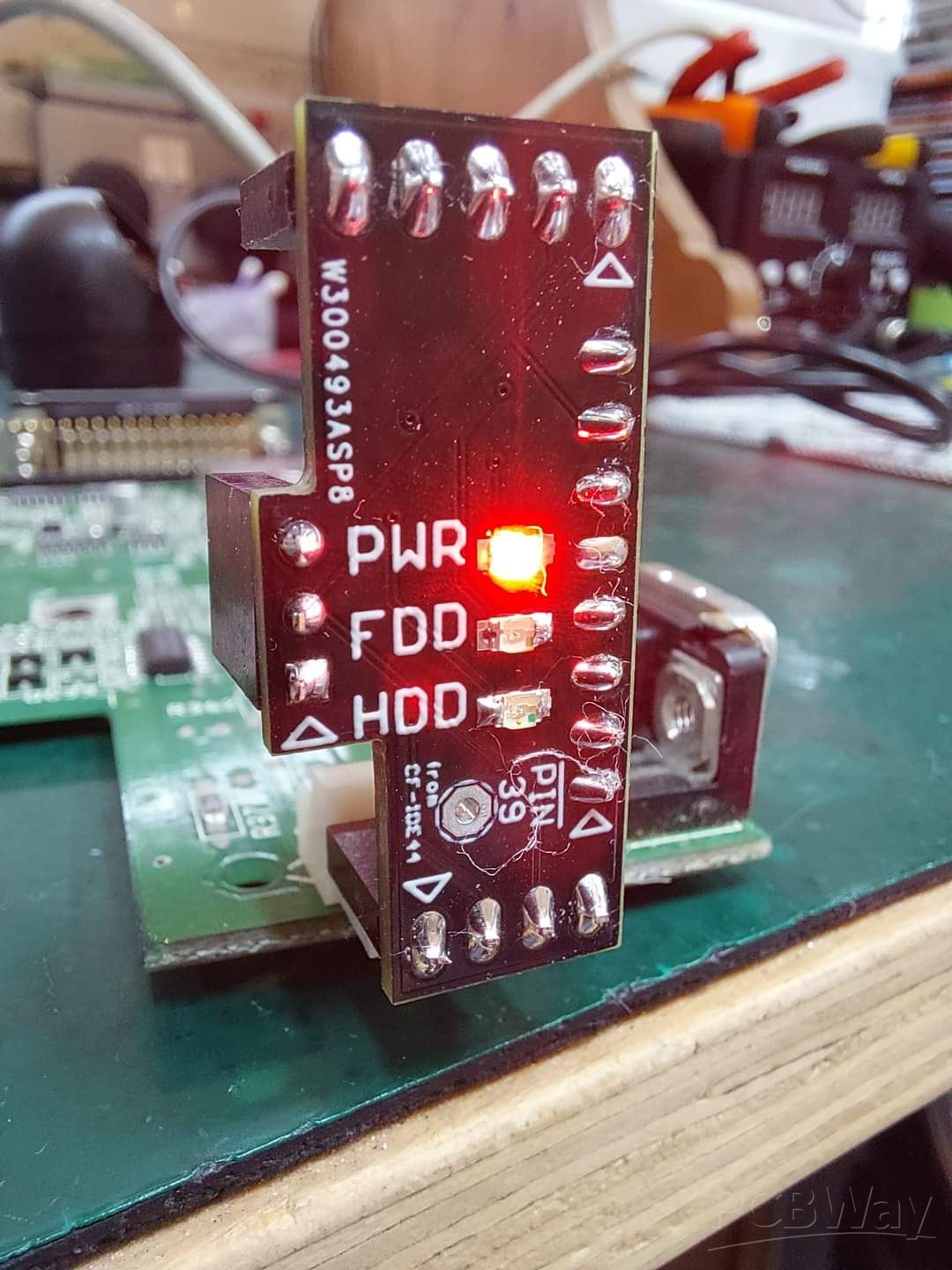

A LED status PCB to connect A500, A600, A1200, A2000 motherboards for troubleshooting purposes without the need to plug the chassis/keyboard.
It provides sharp and bright LEDs for POWER, HDD and FDD activity.
Minimal BOM list.
Aug 16,2023
1,368 views
Commodore AMIGA LED 500 600 1200 2000 status board multi system for debugging and troubleshooting hardware
A LED status board to connect A500, A600, A1200, A2000 for troubleshooting purposes without the need to plug the chassis/keyboard.
