Description

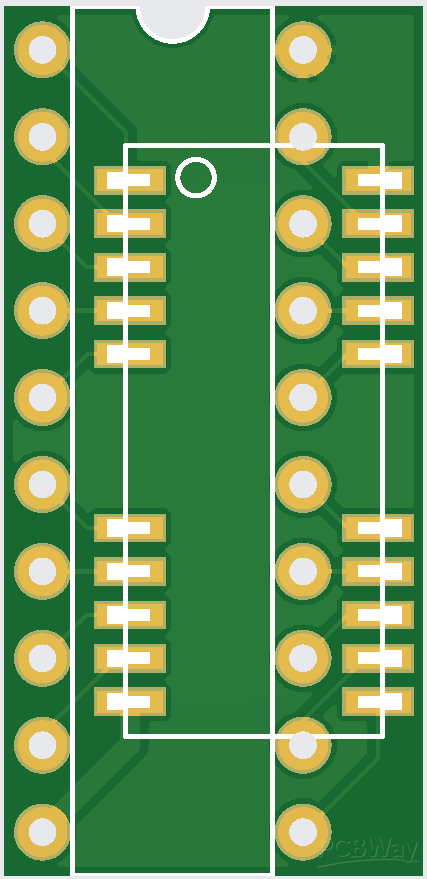

RAM adapter SOJ26 DIP20 right
A solution to install SOJ26 chips into DIP20 sockets (right side oriented)
BOM list:
TC514400ASJ-x0 TOSHIBA
Single row machined round pin gold plated male headers (2.54mm)
Jan 09,2026
53 views
RAM adapter SOJ26 DIP20 right
A solution to install SOJ26 chips into DIP20 sockets (right side)
53
1
2
Published: Jan 09,2026
Standard PCB
PCBWay Donate 10% cost To Author
Only PCB
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-NonCommercial-ShareAlike (CC BY-NC-SA)
License.
