Commodore AMIGA PSU USB-C Power Sink Delivery Supply High Efficiency Triple Output 5V ±12V OLED ATARI ST shark
Compact design for high efficiency (>90%) USB-C Power Supply for Amiga 500, 600, 1200.
71 x 34 mm, 2 layers, 1.6mm thickness, 1 oz.

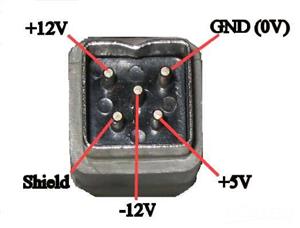

Original square DIN 5 male connector should be used to plug to Amiga.
https://www.ebay.com/itm/133282737029

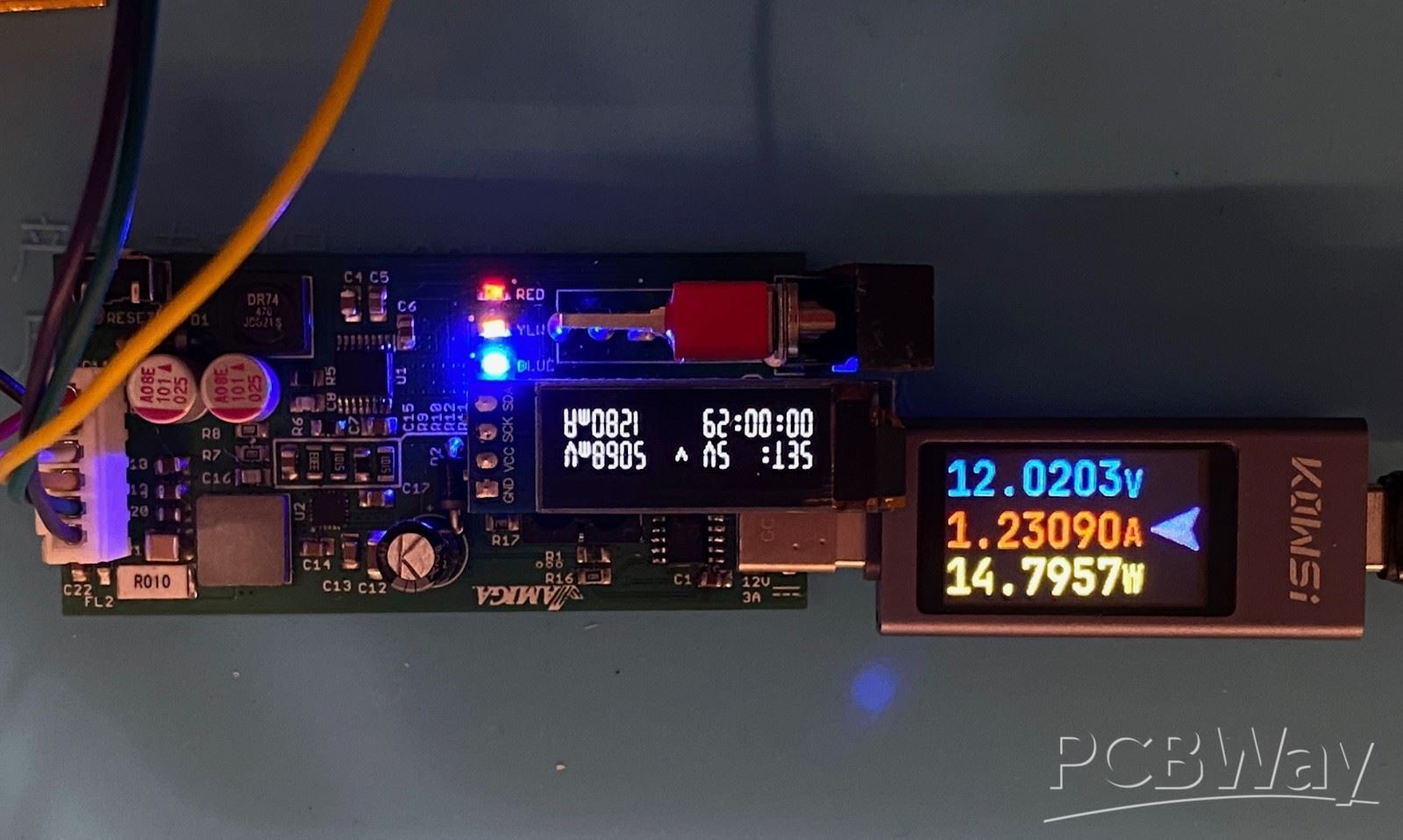

Optional OLED display for monitoring current, voltage and power of the 5V output rail.
The circuit comes with Under-Voltage, Over-Load, Over-Voltage, Short-Circuit, Thermal protections and filters to reduce EMI and ripple noise.
With adequate USB-C power source, it is able to delivery continuously:
+5V: 4.5A (peak 6.5A)
+12V: 0.5A (peak 1.0A)
-12V: -0.1A (peak -0.15A)
Combined power cannot exceed power available from the USB-C (C1 or C2) power source (36W = 12V x 3A on delivery).
The USB-C cable should withstand 5A and be 50~100cm long (max).
Firmware (Github): https://github.com/wagiminator/ATtiny814-USB-PD-Adapter
wrote by wagiminator Stefan Wagner
Note: it might be usable with other machines such as ATARI ST models, etc. (-12V no use)
