Autodesk Fusion 360Autodesk
|

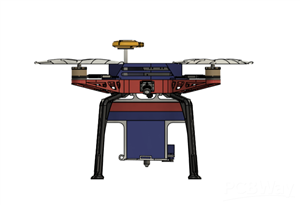

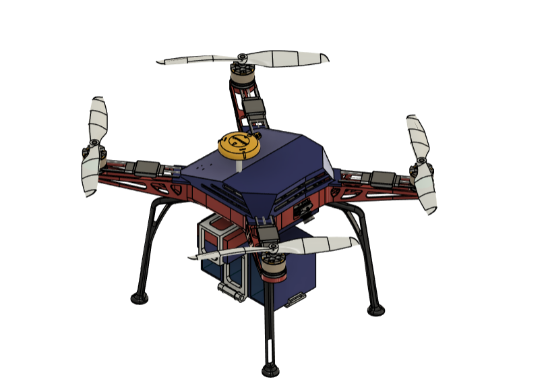

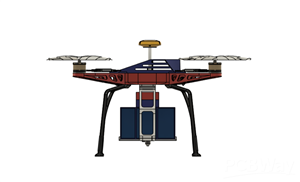

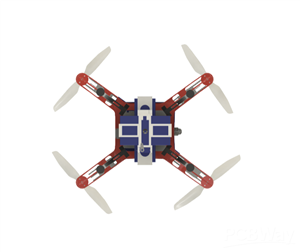

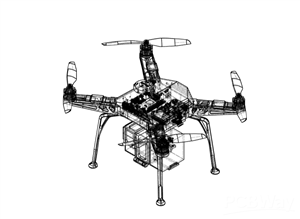

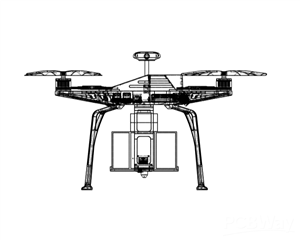

Spray Bot - 3D MODEL
Spray Bot is an intelligent agricultural robot designed to complement Vision Bot by performing targeted pesticide application based on real-time crop health data. While Vision Bot scans and analyzes the field to detect infections or pest infestations, Spray Bot responds by delivering the appropriate treatment precisely where it is needed, minimizing chemical waste and human exposure.
Equipped with a triple-tank system, Spray Bot can store and switch between three different insecticides or treatments in real-time according to the type of infection identified by Vision Bot. Its adjustable nozzles, flow control, and onboard sensors ensure consistent and accurate spraying across various field conditions.
Built for modularity and integration, Spray Bot allows easy maintenance, tank replacement, and future upgrades. Combined with Vision Bot’s monitoring capabilities, it creates a smart, automated, and efficient precision agriculture system that reduces manual labor while improving crop health and yield.
Spray Bot - 3D MODEL
