Components

	ESP32-C3-MINI-1N4 Espressif_Systems	x 1
	430182130816 Würth Elektronik	x 4
	09032 SparkFun Electronics	x 1
	S2B-PH-K JST Sales America Inc.	x 1
	SMD CAPACITORS	x 1
	SMD RESISTORS	x 1

Tools, APP Software Used etc.

KiCad 9.0

Description

AIR_MOUSE – ESP32-C3 Based Wireless Air-Style Remote

The AIR_MOUSE is a compact wireless air-style remote designed for effortless navigation of TVs and other distance-based displays. Instead of relying on motion sensors, it uses a dual-axis joystick and dedicated navigation buttons to deliver stable, accurate, and drift-free cursor control.

Built around the ESP32-C3, the device is optimized for low power operation and runs on two standard AAA batteries. This approach significantly reduces power consumption while maintaining reliable wireless performance suitable for everyday use.

The hardware is fully custom-designed in KiCad and prepared for real-world manufacturing, complying with standard PCB fabrication and assembly constraints. The project focuses on practical usability, efficiency, and scalability rather than experimental concepts.

Code

Other Files

https://github.com/MAATHES-THILAK-K/AIR_MOUSE/tree/main

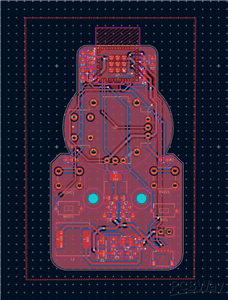

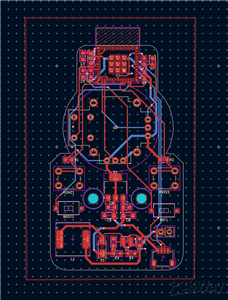

Schematic and Layout

https://github.com/MAATHES-THILAK-K/AIR_MOUSE/tree/main/GERBER

CAD-Custom parts and enclosures

Grabcad - 3D MODEL

https://grabcad.com/library/air-mouse-esp32-c3-1

Download Gerbers Download BOM(Bill of materials)

Jan 24,2026

24 views

AIR_MOUSE – ESP32-C3 Based Wireless Air-Style Remote

ESP32-C3 based wireless air-style mouse using a dual-axis joystick for precise TV navigation—low power, stable control, and manufacturing

Published: Jan 24,2026
