Data Recorder Arduino UNO Cassette / Tape Dump CMT remote control for vintage computers
An Arduino UNO R3 (ATmega328) project.
Arduino code by Mr. Takuya Matsubara.
A complete solution to playback and record old tapes using a micro SD card (8GB or smaller, default FAT - no subfolders).
The board can connect vintage computers with a CMT cable (data recorder connector) and manage REMOTE MOTOR control.
It can playback binary files (tape dumps) from the SD card and save binaries from WAV (or authentic FSK signal coming from a tape) to the media.
Tested and compatible with the following vintage computers:

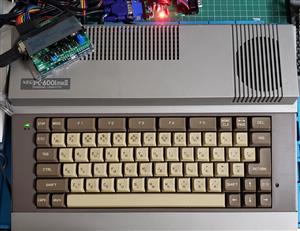

- NEC PC-6001mkII [.CAS / .P6]
- [further to come...]
Main features:
- Arduino UNO layout
- Minimal BOM list for a cost-effective solution

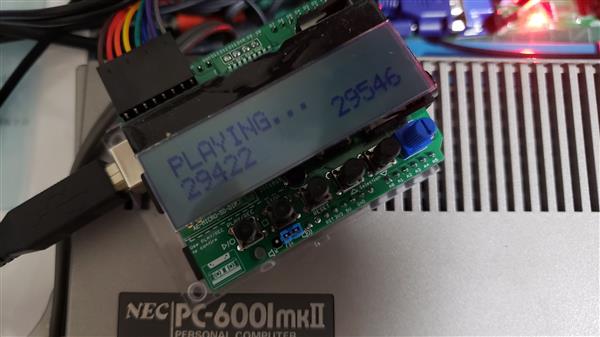

- Wide LCD display
- Speaker for listening FSK during the operation
- Push buttons and fine-tuning for options selection
- No need to make any conversion / post processing using a mobile app
- Automatic REMOTE (motor) control for single and multi load games
(source: msx.org)
In addition to the DigiKey BOM list you need to gather the following parts (or equivalent):
U1
Arduino Uno R3 ATmega328
or
https://www.aliexpress.com/item/32831857482.html?spm=a2g0s.8937460.0.0.32992e0eGH4nbG
Color: UNO R3 328P-PU
(QTY 1)
DIN8 CASSETTE I/F
1 x 8P female/1 x 8P female 2.54mm pitch cable with connector 30cm length
1×8Pメス/1×8Pメス 2.54mmピッチ コネクタ付ケーブル 30cm長
https://akizukidenshi.com/catalog/g/gC-09732/
(QTY 1)
U3
Micro SD card slot DIP conversion kit
マイクロSDカードスロットDIP化キット
https://akizukidenshi.com/catalog/g/gK-05488/
(QTY 1)
U4
I2C small character LCD module (16 x 2 lines - 3.3V/5V) pitch conversion kit
I2C接続小型キャラクタLCDモジュール(16×2行?3.3V/5V)ピッチ変換キット
https://akizukidenshi.com/catalog/g/gK-08896/
(QTY 1)
U5
Audio amplifier NJM2073D
オーディオアンプIC NJM2073D
https://akizukidenshi.com/catalog/g/gI-03593/
(QTY 1)
U6
General-purpose operational amplifier with two circuits LM358N
2回路入汎用オペアンプ STマイクロ製LM358N
https://akizukidenshi.com/catalog/g/gI-11167/
(QTY 1)
SW1/2/3/4/5
Tact switch TVDP01-G73BB (black)
タクトスイッチ TVDP01-G73BB(黒)
https://akizukidenshi.com/catalog/g/gP-09824/
(QTY 5)
SP1
Piezoelectric speaker (13mm) PKM13EPYH4000-A0
圧電スピーカー(圧電サウンダ)(13mm)PKM13EPYH4000-A0
https://akizukidenshi.com/catalog/g/gP-04118/
(QTY 1)
T1
Transistor 2SC1815L (or KSC1815, 2SC3916~23)
トランジスタ 2SC1815L-BL-T92-K 60V150mA (20個入)
https://akizukidenshi.com/catalog/g/gI-13491/
(QTY 1)

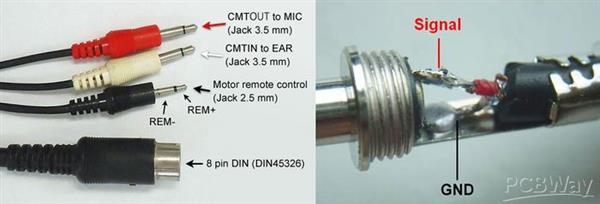

Note: CMT/audio cable is suggested to fit an EMI / RF noise filter (toroid/ferrite on each end) especially if self-made.
