For the first time ever, COREi64.com presents an 3D printable reproduction of the Creative Micro Designs Inc. FD-Series disk drive case as was used in the famous FD-2000 and FD-4000 disk drive.

And as another COREi64.com WORLD FIRST, you can now purchase a reproduction FD-Series drive board and build your very own FD-Series FD-2000 or FD-4000. That board will perfectly fit into this COREi64 custom designed case.

When you're placing your order, be sure to select "3D Printing". Other than that, you're free to select any material or color you'd like, however, the closes to an "injection molded" finish you're going to get will be if you choose "Resin".

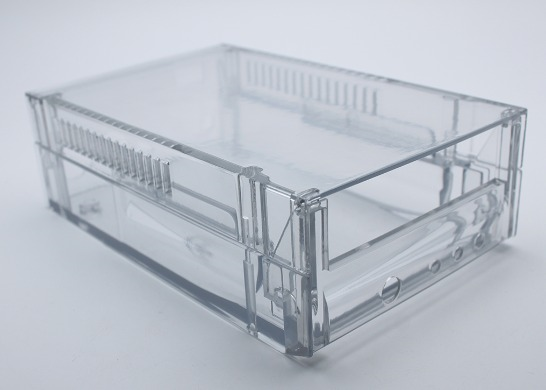

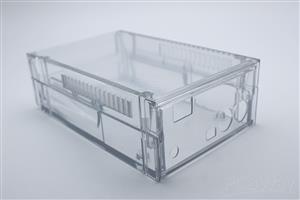

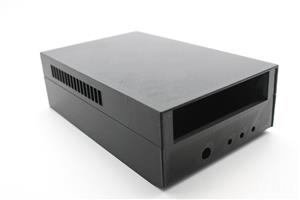

The transparent version of the case you see in the included photos is utilizing the UTR-8100 (transparent) Resin. If you're desiring such a case, then that's what you need to order. Otherwise, if you're looking for the standard black case, then choose a black resin that works for you and your budget. Resin printing is quite affordable here at PCBWay, and will give you a superior finish.

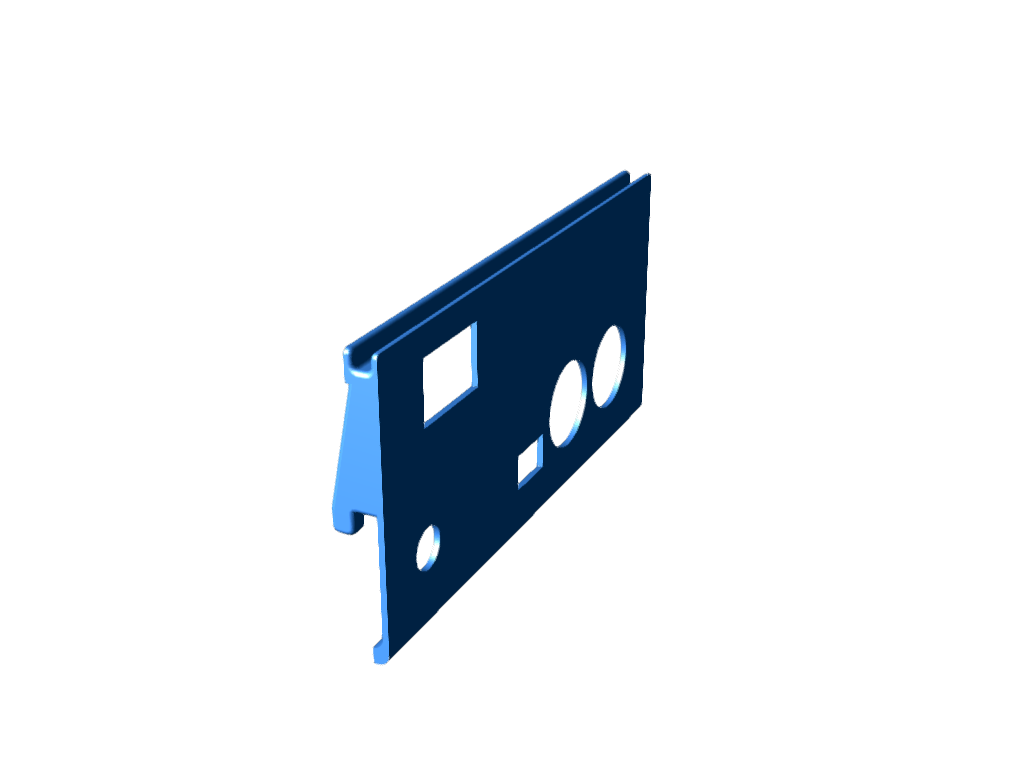

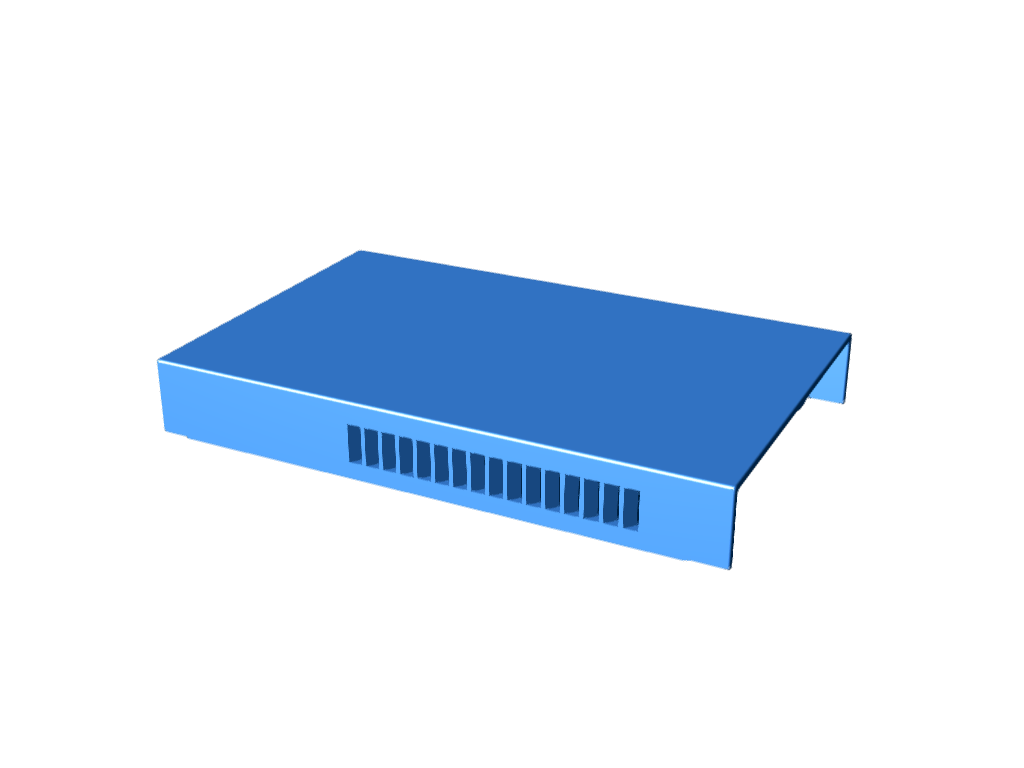

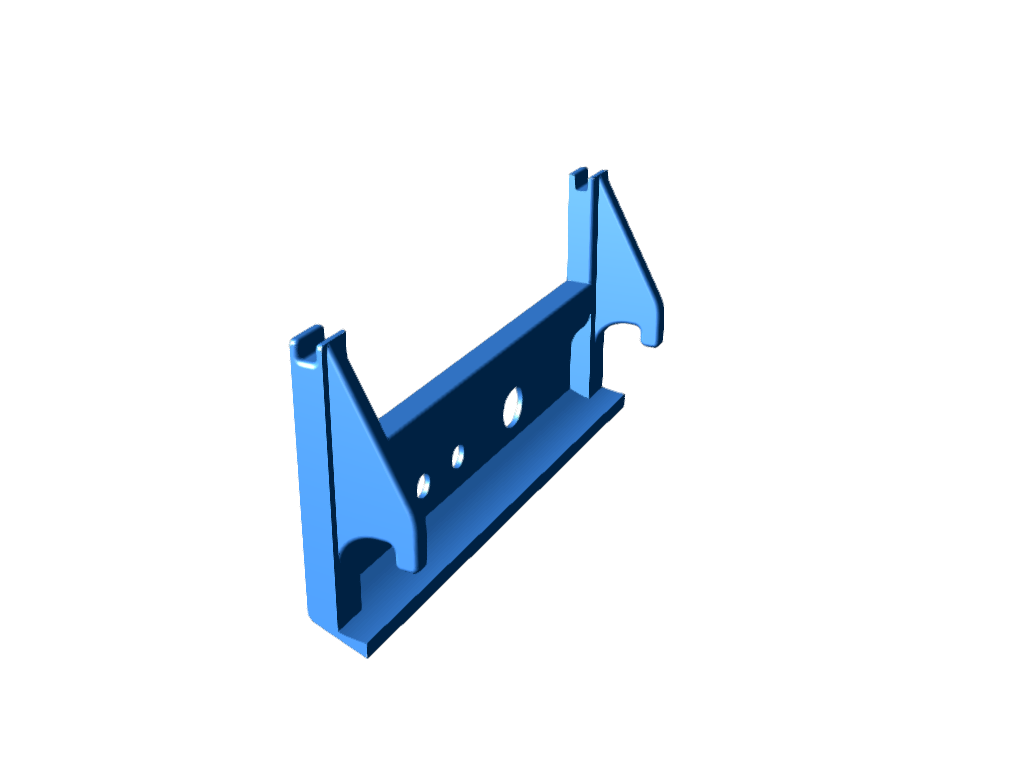

You'll need to order all four parts to assemble the case.

It is designed to utilized the following hardware that is pressed/glued into the heatset locations of the case.

Heatsets:

https://www.mcmaster.com/catalog/94180A331

https://www.mcmaster.com/catalog/94180A307

Screws used for this hardware are:

https://www.mcmaster.com/91290A017

https://www.mcmaster.com/91290A109

https://www.mcmaster.com/91290A111

Post any questions you have here, or through the contact page on COREi64.com

Thanks for visiting my shared project!
