Description
Commodore 64 Expansion Breakout
A port from
https://github.com/hackup/C64ExpansionBreakout
for easier accessability

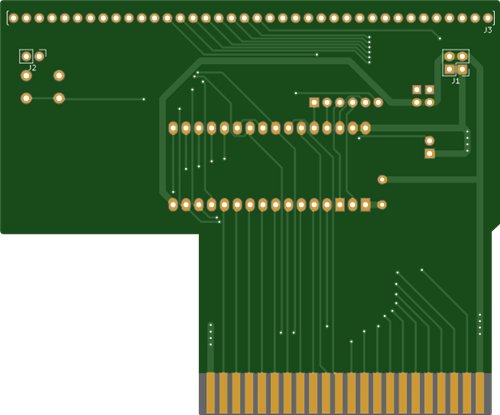

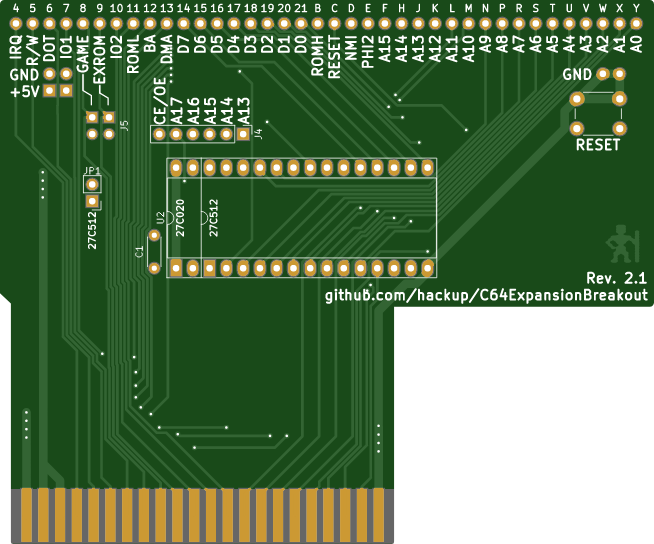

This is an adapter board for the expansion port of the Commodore 64. It connects the expansion port to a standard 830 pin prototyping breadboard to assist with the development of modules or cartridges.
Jun 17,2026
17 views
Commodore 64 Expansion Breakout
An adapter board for the expansion port of the Commodore 64. It connects the expansion port to a standard 830 pin prototyping breadboard
17
0
0
Published: Jun 17,2026
Standard PCB
Download Gerber file 1
BOM(Bill of materials)
PCBWay Donate 10% cost To Author
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
