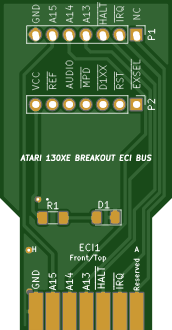

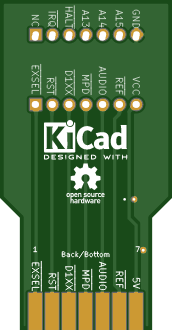

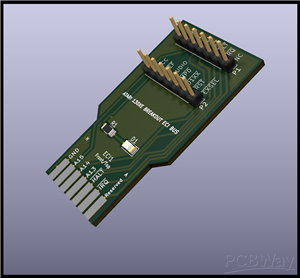

Atari 130 XE and 65 XE (PAL) ECI-Breakout
BreakOut Board for ECI Bus Connector (Enhanced Cartridge Interface (ECI)) Atari 130XE and PAL 65XE ported for greater visibility from
https://github.com/gianlucarenzi/ECI-Breakout
This is a simple ECI Bus breakout board, useful for many purposes developing hardware for Atari 8-bit line of computers
Atari 130 XE and 65 XE (PAL) ECI-Breakout
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
PCBWay is not responsible
for issues caused by unsuitable parameter selections.
