Description

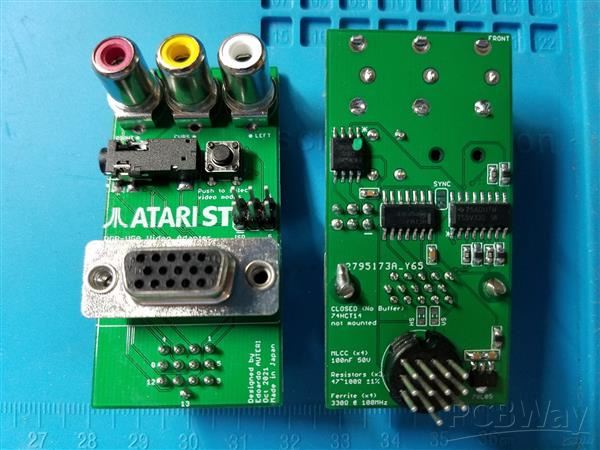

ATARI ST / STE RGB to VGA video Adapter with AV RCA and JACK
NEW version with improved layout here https://www.pcbway.com/project/shareproject/ATARI_ST_STE_RGB_to_VGA_video_Adapter_with_AV_RCA_and_JACK_V2_8144d58e.html
Solution for a multisync video switch for Atari ST/STE.
From the original idea by uberbadassequipment.com
Atari DIN13 to VGA
3.5mm A/V jack connector
RCA plugs for audio and composite
Automatic resolution detection
Buffered/unbuffered H- & V- syncs
Plug the adaptor into the Atari
Turn the computer on
Press less than 2 seconds: Switch mode.
Press longer than 2 seconds: store current video mode as default at cold boot.
Enclosure designed by egmont01
https://www.thingiverse.com/thing:6544898
Crips colours.
Tested with BenQ LCD Monitor G2420HD (ET-0027-B) October 2009 Rev. 00-132-BA and MITSUBISHI LCD Monitor RDT1955
Note: ATARI ST's with NO RF modulator there have only composite sync. The adapter cannot provide CVBS.
You need Arduino UNO to flash the ATTINY correctly or HEX file.
Code
code for ATTINY85-20SU (16MHz Internal)
code for ATTINY85-20SU (16MHz Internal).zip
Schematic and Layout
schematic
CAD-Custom parts and enclosures
mk6_old7_original.brd.pdf
