4x BNC and 2x 3.5mm jacks to 100 mil edge connector

This is a revision of the media adapter boards I've posted--a variation of this one for instance: https://www.pcbway.com/project/shareproject/BNC_to_Banana_x3_adapter_board_fce9876d.html

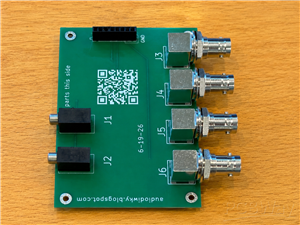

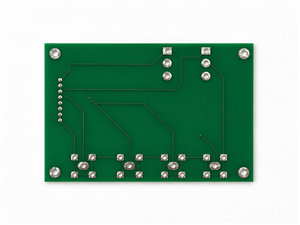

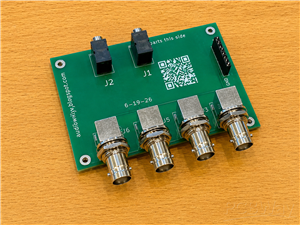

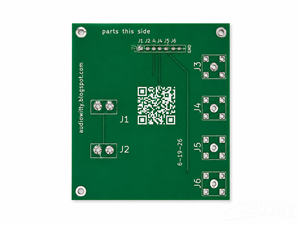

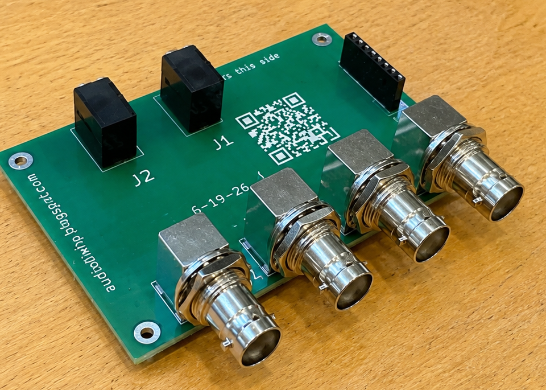

In this case it’s 4x PCB mounted BNC jacks (my function generators and scopes use BNC) and 2x 3.5mm females; each BNC goes to a single pin of a Dupont female 100mil connector as does the tip of each of the 3.5” jacks--since, as a synth/audio guy, a lot of what is on my bench under test has at least a few 3.5mm jacks.

All ground pins are wired together and go to 2 of the edge pins

Typical use case: going from 3.5” jack (synth) to a breadboard, then the breadboard to a BNC (scope).

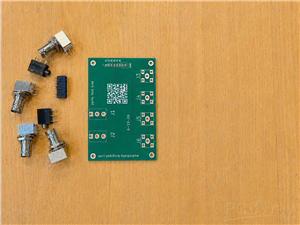

Recommended parts to use:

--The jacks used are Switchcraft 35RAPC2AV jacks for 3.5mm: Digikey SC1457-ND.

--The BNC's are SuperBAT clones of (super expensive!!) Amphenol BNC's. You can pay a box of money for these at Digikey, but save the dough!

the BNC clones are available at Amazon--search for these—"Superbat BNC Connector BNC Female Bulkhead Solder PCB Mount Right Angle”

For the pin headers—any 100mil will do; for instance: 2 of these: https://www.taydaelectronics.com/connectors-sockets/pin-headers/4-pin-2-00-mm-single-row-female-pin-header.html

--AudioDiWHY
