Warm Floater Eurorack Power Extender

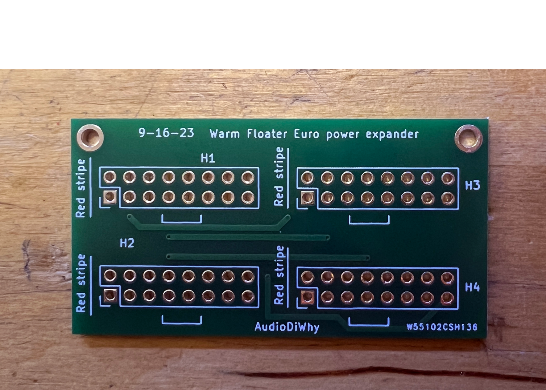

I ran out of physical connections on my Eurorack Power supply. This PCB supplies 1 input and 3 outputs for eurorack power (2x8 2.54mm, +/- 12V, 5V, gate, control), so it's a 1 to 3 adapter.
Check your 3 modules' current draw before using it, as 3 hefty modules may strain your rack's power supply.
For low current draw modules this can be a very helpful board.

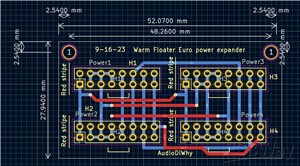

I include KICAD files, the gerber, and the files you'll need to 3D print the "cradle" for it in the project files below.
Read more about this project in this AudioDiWHY blog post: https://audiodiwhy.blogspot.com/2023/11/warm-floater-eurorack-power-strip.html.
NOTES:

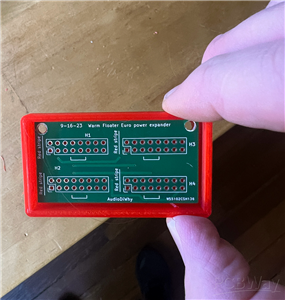

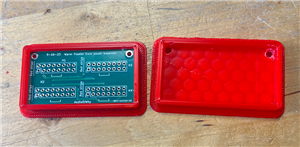

For the 3D print, even after careful measurements and double checking FreeCAD's dimensions I still needed to scale my 3D print to102%. At 100% the board was a very tight fit. My 3D printer usually prints a bit small however.
Warm Floater Eurorack Power Extender
