This is my first project using KiCAD for EDA instead of Autodesk Eagle.

I wanted to see if I had the entire toolchain set up correctly and if I could end up with a useful Synthesizer Euro module designed entirely with KICAD EDA.

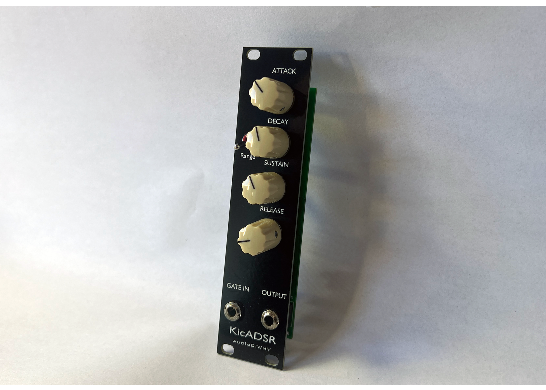

It worked! This is a fully functional "ADSR" (Attack, Decay, Sustain, Release) envelope generator. It has a range switch for "snappy" (short) or "dreamy" (longer) envelopes.

Please see these blog posts for more information:

Laying out this module: "KiCADSR": https://audiodiwhy.blogspot.com/2023/10/kicadsr-first-project-using-kicad-eda.html

Leaving Eagle EDA for Kicad: https://audiodiwhy.blogspot.com/2023/09/kicad-making-switch.html

Initial 2019 build (Frac format): https://audiodiwhy.blogspot.com/2019/01/renaydsr-zen-and-art-of-tau.html

Rene Schmitz's original page about the design: https://www.schmitzbits.de/adsr.html

FABRICATION:

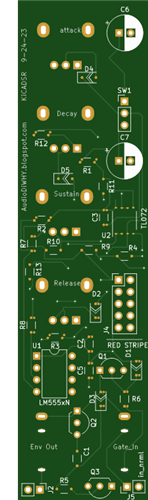

• You will need two boards for the project: main PCB (which includes provisions for pots and jacks) and a Eurorack spec front panel.
• if you are ordering the front panel from PCBWAY, I suggest checking "for an extra $1.50 do not include a project code"
• I created my front panel in black with White silks--colors are up to you.

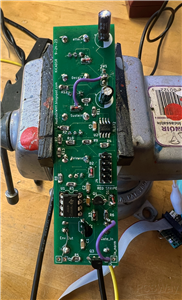

• Main board extensively uses 1206 SMD and SOIC parts. Not too hard to solder, but perhaps not for beginners.

===========

Update 8-2-24: minor updates to PCB: improved bypass cap placement and changes to silksreen (top and bottom) to assist in parts placement.
