PCB design must withstand extreme temperatures, humidity, vibration, dust, and electromagnetic interference common in industrial environment.

EMC/EMI Compliance

High-frequency switching and multiple interconnected devices increase the risk of electromagnetic interference, requiring careful layout, shielding, and filtering.

High Power and Mixed Voltage Handling

PCB Design may need to support both low-voltage logic and high-power actuation, requiring careful layout separation and protection.

Long-Term Reliability

Industrial equipment is expected to run 24/7 for years. PCB design must focus on thermal management, durable materials, and fail-safe layout.

Our Solutions

Reliable PCB Design

Use of industrial-grade materials with high thermal and mechanical tolerance.

Conformal coating and surface finish options for protection against dust, moisture, and corrosion.

Optimized layout for temperature distribution and heat dissipation.

Separation of analog/digital/high-voltage zones to reduce cross-interference.

Get an instant quote

EMC/EMI-Optimized Design Practices

Ensuring Compliance in Noisy Industrial Environment.

Strategic component placement and ground plane design.

Use of ferrites, filters, and shielding enclosures.

Differential pair routing and impedance control for signal integrity.

Segregation of high-speed and noisy power sections.

Get an instant quote

Power Integrity and Isolation Techniques

Managing High Power and Mixed Voltage Requirements.

Isolated power domains and robust power filtering.

Use of opto-isolators, transformers, and isolation ICs.

Proper creepage/clearance and safety spacing in high-voltage areas.

Optimized routing to minimize power noise and crosstalk.

Get an instant quote

Design for Reliability and Longevity

Supporting 24/7 Industrial Operations.

Optimized power and thermal distribution to reduce component stress.

Built-in diagnostics and self-test features.

High-quality PCB materials (e.g., TG150+) for long-term performance.

Design rules aligned with IPC standards and industrial certifications.

Get an instant quote

Our Design Service Workflow

Requirement Analysis

Gain a deep understanding of customer needs, analyze product functions, performance requirements, cost constraints, and timelines, and develop a detailed design plan.

PCB Layout

Perform PCB layout and routing design, considering signal integrity, power integrity, thermal management, and EMC factors to optimize PCB performance.

Prototyping and Testing

Produce PCB prototypes and carry out functional, performance, and reliability tests to verify the design's accuracy and stability.

Schematic Design

Design circuit schematics based on requirements, perform circuit simulation and validation if necessary, select appropriate components and optimize circuit performance.

Design Review and Optimization

Conduct multidimensional design reviews, including DFM, DFT, SI/PI, and EMC checks, and optimize the design based on the review results.

Mass Production Support and Maintenance

Provide production documentation and technical support, assist customers with mass production, resolve issues during the manufacturing process, and offer ongoing design maintenance services.

Successful Project Development Case

COMe-D2000-development-board

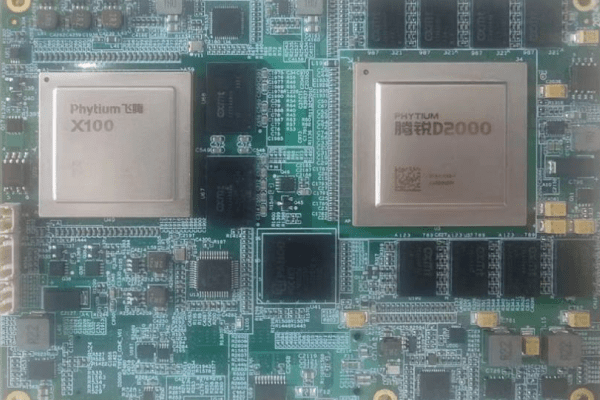

The main frequency is 2.0/2.3GHz (optional), with an eight-core processor, onboard DDR4 16GB memory, and supports DP display output. It is a highly integrated COM embedded core board that integrates high performance, low power consumption, and high reliability. It can be widely used in energy, communications and other fields.

Size 95*125mm

Chip D2000

15%Size reduced by

VPX-CPU-D2000-development-board

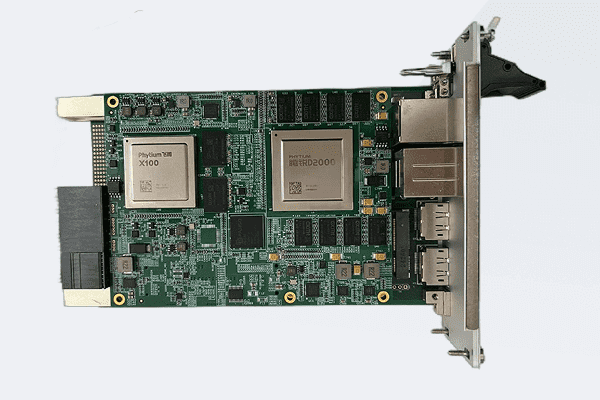

The VPX-CPU-D2000 is powered by the D2000 processor with a maximum power consumption of 25W. It integrates 8 FTC663 cores, 2 DDR4-3200 controllers, and supports a maximum frequency of 2.3GHz. Featuring a wide range of interfaces, it is widely used in industrial automation and edge computing applications.

Size 100*160mm

Chip D2000 Industrial Edition

18%Quality improved by

VPX-STR-01A-development-board

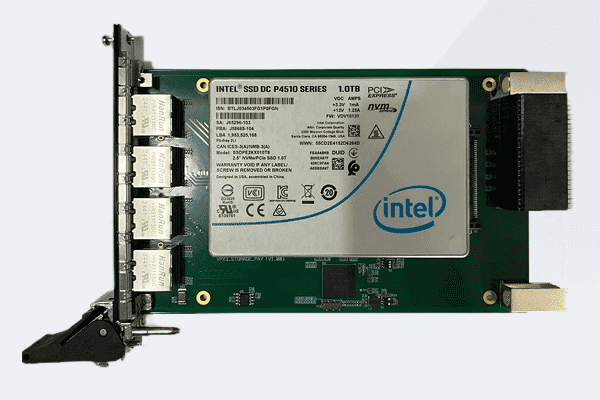

The VPX-STR-01A is a standard 3U VPX U.2 SSD storage board. It is equipped with two standard VPX connectors (P0 and P1), one onboard U.2 SSD connector, and four Ethernet ports. It is designed for FPGA signal processing and storage applications, as well as various storage solutions based on the 3U VPX architecture.

Size 160mm*100mm

Chip plx8748

19%Stability improved by

VPX-10Gbps-Fiber-Optic-PCB

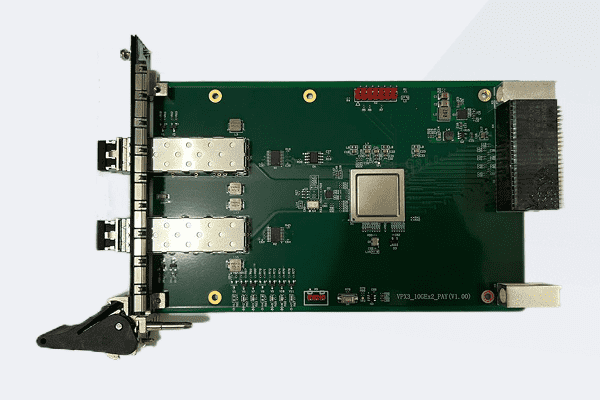

The VPX-XGE 10 Gigabit fiber board is a high-performance embedded hardware module designed to meet the demands for high-speed data transmission and real-time processing in fields such as industrial control. The front panel features two 10Gb/s SFP fiber interfaces. It is widely used in industrial automation, edge computing, and other applications.

Size 160mm*100mm

Chip wx1820

17%Cost reduced by

RK3568 development board

High performance, low power consumption, multiple display interfaces, rich expansion interfaces, various network interfaces, high definition, and support for lightweight AI application development.

Size 140*100mm

Chip RK3568

17%Cost reduced by
