Professional PCB Design & Layout Projects Across Industries

CASE STUDIES

RK3568 development board

High performance, low power consumption, multiple display interfaces, rich expansion interfaces, various network interfaces, high definition, and support for lightweight AI application development.

Size 140*100mm

Chip RK3568

5%Stability improved by

RK3588 development board

Supports 8K video encoding and decoding; features a wide range of interfaces, supporting multiple hard drives, Gigabit Ethernet, WiFi 6, 5G/4G expansion, and various video input and output options; compatible with multiple operating systems and suitable for applications such as edge computing and intelligent NVRs.

Size 346*120mm

Chip RK3588

7%Cost reduced by

RK3399 development board

Industrial-grade display driver board with a 1.8GHz main frequency, Gigabit adaptive Ethernet port, rich peripheral interfaces, support for 4K HD decoding, and compatibility with Android/Linux operating systems.

Size 153*100mm

Chip RK3399

9%Time saved by

RK3576 development board

With a maximum main frequency of up to 2.2GHz, it supports up to 8K decoding, various upgrade methods, rich expansion interfaces, powerful computing performance, and is capable of AI development and edge computing applications.

Size 120*78mm

Chip RK3576

11%Performance enhanced by

COMe-D2000 development board

The main frequency is 2.0/2.3GHz (optional), with an eight-core processor, onboard DDR4 16GB memory, and supports DP display output. It is a highly integrated COM embedded core board that integrates high performance, low power consumption, and high reliability. It can be widely used in energy, communications and other fields.

Size 95*125mm

Chip D2000

20%Stability increased by

VPX-CPU-D2000 development board

The VPX-CPU-D2000 is powered by the D2000 processor with a maximum power consumption of 25W. It integrates 8 FTC663 cores, 2 DDR4-3200 controllers, and supports a maximum frequency of 2.3GHz. Featuring a wide range of interfaces, it is widely used in industrial automation and edge computing applications.

Size 100*160mm

Chip D2000 Industrial Edition

15%Size reduced by

VPX-STR-01A development board

The VPX-STR-01A is a standard 3U VPX U.2 SSD storage board. It is equipped with two standard VPX connectors (P0 and P1), one onboard U.2 SSD connector, and four Ethernet ports. It is designed for FPGA signal processing and storage applications, as well as various storage solutions based on the 3U VPX architecture.

Size 160mm*100mm

Chip plx8748

18%Quality improved by

VPX 10Gbps Fiber Optic PCB

The VPX-XGE 10 Gigabit fiber board is a high-performance embedded hardware module designed to meet the demands for high-speed data transmission and real-time processing in fields such as industrial control. The front panel features two 10Gb/s SFP fiber interfaces. It is widely used in industrial automation, edge computing, and other applications.

Size 160mm*100mm

Chip wx1820

20%Stability increased by

Smart Watch

Supports touchscreen operation, Bluetooth communication, magnetic charging, environmental temperature, humidity, and altitude monitoring, heart rate monitoring, raise-to-wake screen feature, and a 3-axis sensor for gravity sensing.

Size 33*42mm

Chip STM32

17%Cost reduced by

Smart speakers

Utilizes a highly integrated PCBA solution, with a main control chip tailored for smart voice interaction. It integrates Bluetooth 5.0 and dual-band Wi-Fi (2.4G/5G) connectivity, supports local audio decoding and far-field voice wake-up, ensuring stable connections and efficient interaction.

Size 90*90mm

Chip MT8516

13%Cost reduced by

Smart GPS Tracker for Pets

Feature:Supports 4G network, GPS + Wi-Fi + LBS + Beidou + AGPS, high-performance ceramic antenna, real-time positioning, and low power consumption.

Size 20*35mm

Chip EG915U

13%Size reduced by

Bluetooth Headset

Balancing power consumption and transmission stability, it features Bluetooth version V5.3 with an effective range of 15–20 meters, a charging time of 1.5 hours, and a standard frequency response range of 20Hz to 20kHz.

Size 15*20mm

Chip BES2300

18%Time saved by

15W wireless charging PCB

Suitable for wireless charging bases, mobile phones, smart watches, car chargers, etc., with multiple safety protections, such as temperature protection, anti-reverse protection, FOD metal object detection, etc.

Size 30*25mm

Chip IP6808

6%Size reduced by

7kw charging pile motherboard

It has a rich peripheral expansion interface, can be equipped with industrial-grade display screen, card reader, etc., ultra-low standby power, and multiple safety protections, and built-in hardware watchdog.

Size 142mm*142mm

Chip ARM Cortex-M4F

10%Quality improved by

GaN PD 30W

Input:100–240V Output:5V⎓3A, 9V⎓3A, 12V⎓2.5A, 15V⎓2A, 20V⎓1.5A Port A Charging Protocols: QC3.0 Port C Charging Protocols: FCP, SCP, AFC, QC3+, PD3.0, DCP.

Size 38.5*34.5

Chip MK2787

10%Quality improved by

GaN PD 65W

Input: 100–240V Output: 5V3A, 9V3A, 12V3A, 15V3A, 20V3.25A Port A Charging Protocols: QC3.0, QC2.0, DCP, AFC, FCP, SCP, APPIe2.4A, Samsung-2.0A Port C Charging Protocols: FCP, SCP, AFC, QC3+, PD3.0.

Size 56*55

Chip MK2789IDG

8%Time saved by

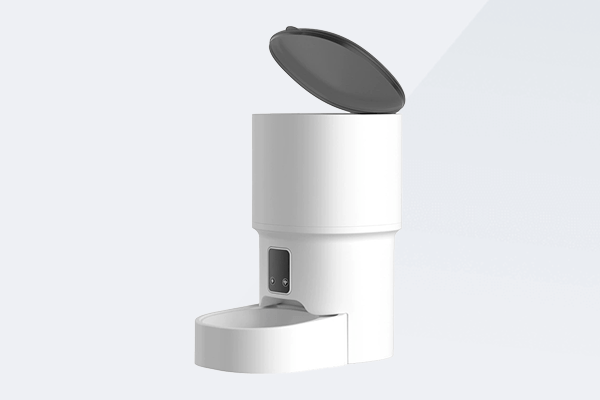

Smart Pet Feeder

Supports remote APP control and adopts a 2.4G wireless module. Features voice interaction, equipped with an audio amplifier, supports food level monitoring, integrates a 24-bit ADC module, and provides automatic low-level reminders.

Size 18*25*30

Chip WTR096

6%Size reduced by

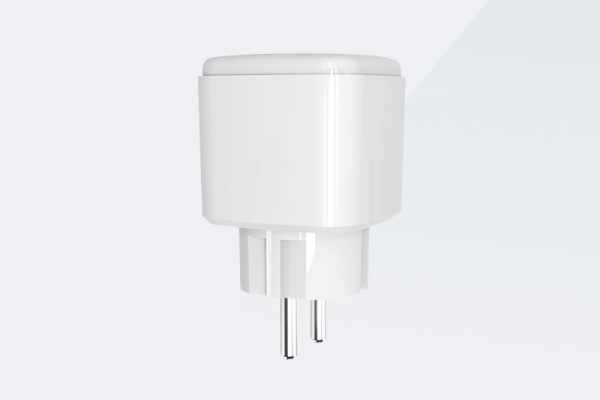

Smart Plug

Supports connection to multiple platforms such as Google and Amazon, and supports Wi-Fi/Zigbee/BLE Mesh communication as well as mobile APP control. Maximum output current: 10A; operating voltage: AC 100–240V, 50/60Hz.

Size 6*6*11.5mm

Chip ESP32-S3

10%Quality improved by

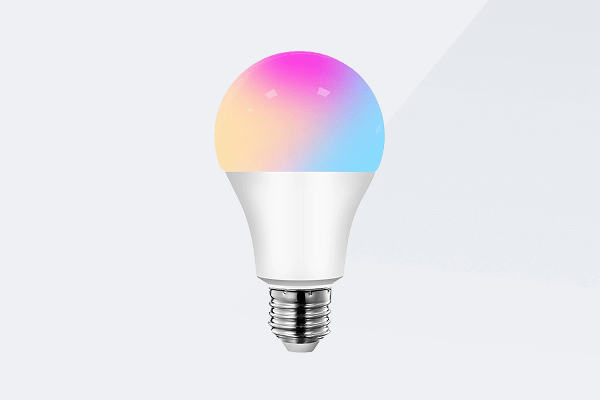

Smart Bulb

Supports remote APP and voice control for power switching, brightness and color temperature adjustment, and scene mode switching. Features dual-mode Wi-Fi/Bluetooth connectivity, automatic light sensing adjustment, and over-temperature protection, and supports integration with Alexa and Google.

Size 6*6*11.5mm

Chip ESP32

14%Stability improved by

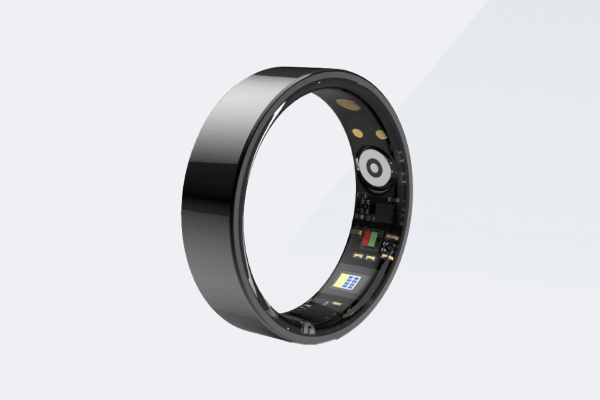

Smart Ring

Memory 64KB + 8KB; battery capacity: 15–20mAh; connectivity supports Bluetooth Low Energy 5.4; waterproof rating: 5ATM + IP68; heart rate sensor: HX3918 with tri-color LED.

Size 81*81*31mm

Chip AB2026B3

13%Cost reduced by

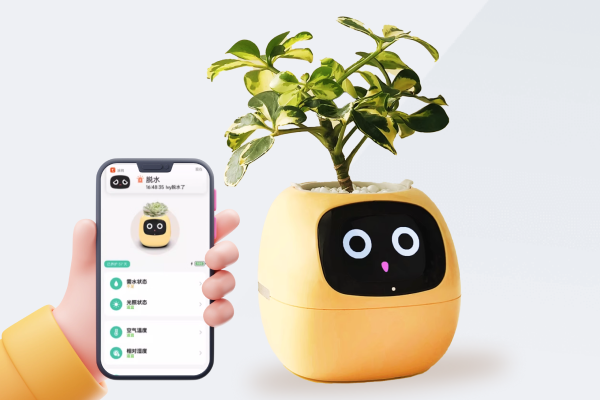

Smart AI Flowerpot

Powered via USB Type-C, charging voltage 5V, supports Wi-Fi 2.4GHz connectivity, equipped with a 2-inch 16-bit IPS LCD screen, built-in 7 sensors, supports smart home integration.

Size 114*100*96cm

Chip STM32F103C8T6

13%Cost reduced by

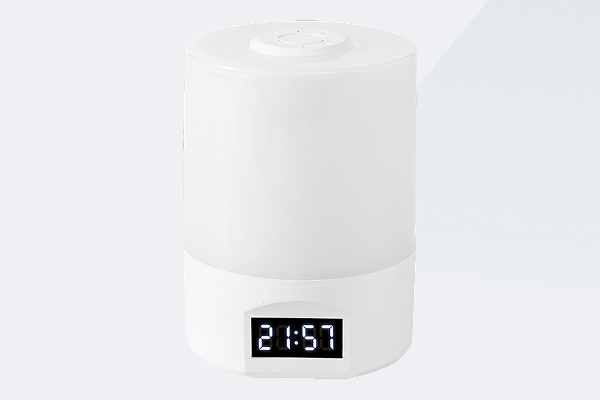

Adjustable Bedside Night Light

Voltage ≤36V, touch switch, supports stepless dimming and color temperature adjustment, light source power 5V 1A (W).

Size 8*8*11cm

Chip EC022WS

15%Cost reduced by

300W Portable Outdoor Emergency Power Station

Power 300W, ternary lithium battery cells, multiple output ports, compatible with various devices, supports PD 60W fast charging, built-in inverter, equipped with independent AC switch.

Size 24.5*12*14.5cm

Chip CS32F030C8T6

16%Quality improved by

Portable Medical Nebulizer

Supports both battery and AC/DC power supply for flexible use.uilt-in protection against overheating, overcurrent, and low voltage.One-button start with detachable parts for convenient maintenance.

Size 67*48*107mm

Chip Holtek BS45F3833

7%Quality improved by

Forehead Thermometer

Non-contact measurement for safety and hygiene; delivers results in 1–3 seconds for high efficiency and convenience; accuracy up to ±0.3°C (±0.2°C for certain models) ensures reliable data; equipped with fever alert, data storage, and automatic power on/off functions; compact and portable design with low power consumption for long battery life.

Size 77*43*149 mm

Chip SDI5229TS

18%Time saved by

Blood Pressure Monitor

Adopts the oscillometric method with a low-power design, automatically measuring blood pressure (systolic and diastolic) and heart rate; pressure measurement accuracy of ±3 mmHg (±0.4 kPa); features a large display, high/low pressure over-limit alarm, and supports multiple sets of data storage.

Size 129*96*41 mm

Chip JSC69F00X

9%Performance enhanced by

Finger Pulse Oximeter

OLED display, SpO₂ (blood oxygen saturation) range: 0-100%, accuracy ±2%; Pulse rate range: 25-250 BPM, accuracy ±1% or ±1 BPM; Power consumption ≤40mA.

Size 58*32*33 mm

Chip TCAS24

13%Size reduced by

Digital Blood Glucose Meter

LCD display, supports multiple data storage sets, records measurement time, and features a low-power design.

Size 90*57*20 mm

Chip nRF52832

7%Quality improved by

Range Extender Control Unit

Integrated motor control for start/generation, engine constant-speed control output or output based on SOC demand, real-time charging and direct power output to ensure driving performance. Engine automatic start/stop and power generation output are controlled via CAN bus, supporting CAN 2.0, ISO 15765, and SAE J1939 protocols.

Chip NXP SPC5744

11%Performance enhanced by

Autonomous Driving Control Unit

The hardware circuit of this computing platform is designed based on the application requirements of autonomous driving systems. Its electrical parameters meet automotive-grade standards and it is equipped with multiple data transmission interfaces to support multi-sensor fusion in autonomous driving. These include four 100 Mbps automotive Ethernet interfaces, eight 1 Gbps automotive Ethernet interfaces, four digital acquisition interfaces, and four analog acquisition interfaces, etc.

Chip TC397

5%Stability improved by

Gateway Controller

The Gateway Controller (GWU) is an essential component of the vehicle's electronic and electrical architecture. Acting as the central hub for data exchange within the vehicle network, it enables the parsing and interaction of network data across different protocols, including CAN, LIN, FlexRAY, Ethernet, and MOST.

Size 112×98×31mm

Chip NXP SPC5606

Power supply DC 12V/24V (9–32V)

Protection rating IP64

7%Cost reduced by

Zone Control Unit

The Zone Control Unit (ZCU) is a key component in modern automotive electronic control systems, integrating powertrain and chassis control functions into a single controller. It operates on a DC 12V/24V power supply (9–32V), features two 10/100 Mbps automotive Ethernet ports, and six CAN communication interfaces. The CANA channel supports any-frame wake-up, while the CANB channel supports specific-frame wake-up.

Size 365×240×42mm

Chip TC399XP-256F300S BD

9%Time saved by

Electric Vehicle Communication Controller

The EVCC is used to handle communication and interaction information during the charging process, ensuring the charging procedure proceeds smoothly. It operates on a DC 12V/24V power supply (9–32V), comes with a default factory-installed Bootloader, and supports the UDS protocol. It features two CAN communication interfaces (supporting CAN flashing), one specific-frame wake-up channel, and five analog signal inputs, including two resistive AIs, two PT1000 sensor inputs, and one reserved PTC input.

Chip NXP S32K314

11%Performance enhanced by

Server PCB Layout

Server PCB stacking, high-speed bus wiring, DDR4 DIMM wiring, High power current handling, Impedance Control.

Size 300*250mm

Layer 16 layers

13%Performance enhanced by

High-speed signal processing PCB

High-speed signal processing PCB layout, PCB stacking,EMC design, etc.

Size 120mm*225mm

Layer 8 layer

19%Size reduced by

High-speed signal processing PCB

High-speed signal processing PCB, PCB stacking,EMC design, etc.

Size 120mm*200mm

Layer 10 layer

16%Quality improved by

Product:RF Circuit PCB Layout

RF Circuit PCB layout, Impedance control and signal integrity, stackup design.

Size 60mm*155mm

Layer 6 layer

11%Performance enhanced by

Gear Box

The enclosed gearbox uses herringbone gears with a 1:5 reduction ratio for smooth, efficient power transfer. Its sealed design protects against dust and moisture, ensuring reliable and quiet operation in harsh environments.

Size 150mm x 120mm x 100 mm

Material Aluminum Alloy

5%Stability increased by

Single-phase smart meter enclosure

This single-phase smart meter enclosure offers secure, weather-resistant housing with IP65 protection. Made from durable materials, it's suitable for both indoor and outdoor use, ensuring reliable performance and easy installation.

Size 100*220*50 mm

Material PC

8%Size reduced by

Three-phase smart meter enclosure design

This three-phase smart meter enclosure provides robust and weather-resistant protection with IP65 rating. Designed for larger metering units, it ensures reliable performance in both indoor and outdoor environments, with easy installation and secure wiring.

Size 100*220*50 mm

Material PC

12%Time saved by

Router enclosure design

This router enclosure is designed to provide compact, durable, and ventilated housing for network devices. It ensures effective heat dissipation, secure mounting, and protection for indoor use. Customizable for different form factors and port layouts.

Size 130*190*35 mm

Material PC

18%Performance enhanced by

Aluminum Alloy Enclosure for Control Terminal

This aluminum alloy enclosure provides robust and lightweight protection for control terminals. It offers excellent heat dissipation, corrosion resistance, and durability, making it ideal for industrial and outdoor applications. Designed for easy installation and secure housing of electronic components.

Size 150*182*64 mm

Material Aluminum Alloy

13%Stability increased by
