STM32F405 DEVELOPPER KİT

Hello, I am a sophomore in electrical and electronics engineering.

I love designing things and presenting them to people.

The aim of this project is to make an STM32F405 microprocessor development kit as open source.

People can make their own development kits using this project.


The STM32F405 processor is chosen for this development kit because it is fast and inexpensive for everyone.


This development kit includes DC motor pins, Servo motor pins, Industrial communication protocols (SPI, I2C, USART, UART, ETHERNET) pins and digital-analog input and output pins.

A connection pin is also available for the HMI LCD display.


There are 3 options to feed this development kit. These ;

1 - Micro-B USB

2 - DC JACK (7-24V)

3 - 5,00 mm CONNECTION (7-12V)


Thanks to these three feeding methods, the development kit can easily operate between 7-24 volts.


In addition, LEDs on the power supply and communication are provided. This makes it easy to see if there is a problem with the development kit's operation.


With the reset button on it, the development set memory can be easily reset.

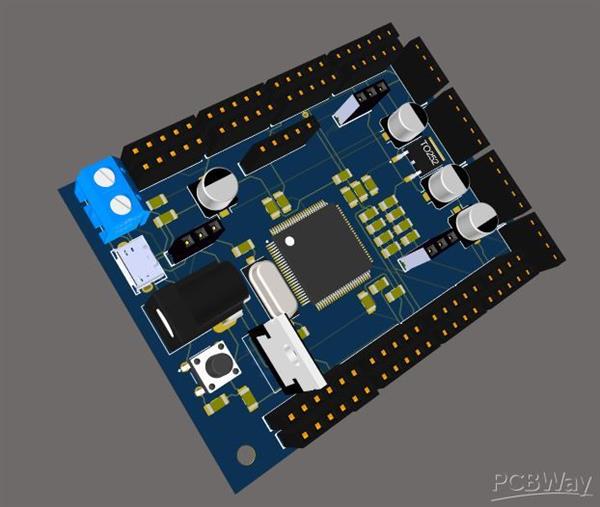

I will share circuit diagram and PCB 3D images for people to do this project.


If PCBWAY supports this project, I will give the development kits I produced with my friends with the draw.

I'm gonna tell them I'm doing it on PCBWAY.
