Hello I am an electrical and electronics engineering student. I'm a sophomore and I love designing and producing things.

The aim of this project is to provide the main control of unmanned systems on land, sea and air platforms.

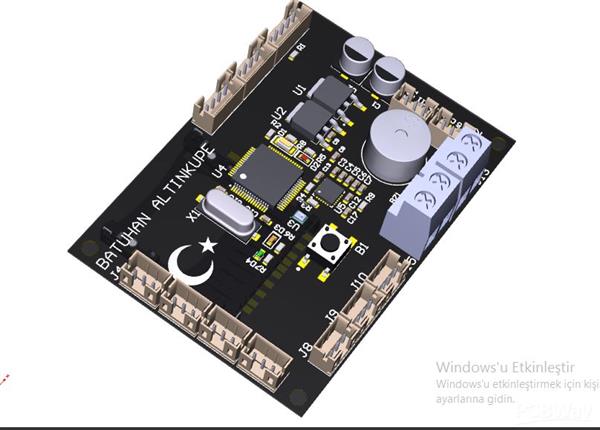

The STM32F405 was chosen as the main control of the design for fast and practical operation.
The design includes a 12V battery input, camera input, 8 DC and SERVO motor input, GPS, buzzer and reset button, an XBEE module and a programmer pin. The voltage range of the design is 12V input 3.3V or 5V output.

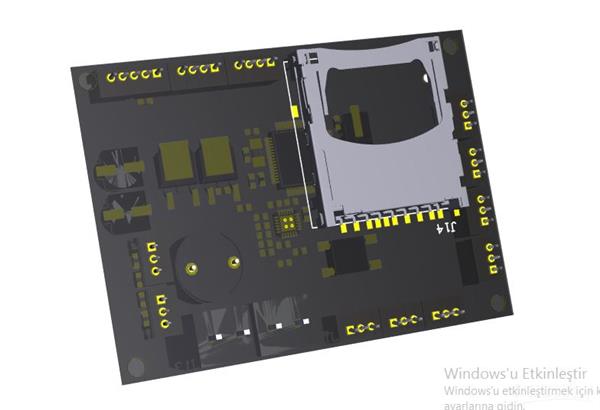

Two sensors, one with gyroscope and the other with pressure, were used in the design. However, new sensors can always be added to the design. The sensors are designed to use SPI communication or the I2C communication protocol.In addition, an SD CARD input is included in the design to record data from sensors and cameras.

If PCBWAY supports this project for me, I would be happy to implement this project and tell PCBWAY to my friends
