1P12T Rotary switch sub-board

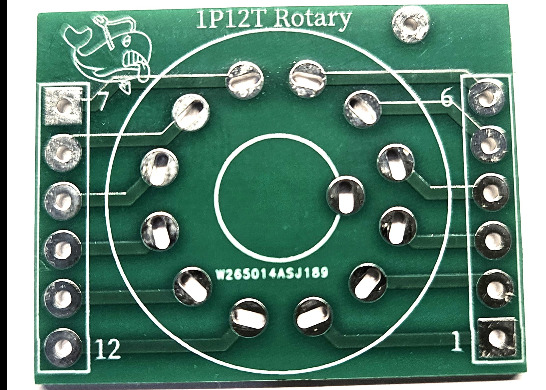

For those rotary switches that are a dog to solder wires to ! Solder the switch to the board then add the wires, or components as required.
Top single hole is for the pole. This is aimed more for those bundles of wires. You could stick general components in and have them connecting to a common point. Bit messy, but would work.
Dec 22,2024
974 views
1P12T Rotary switch sub-board
2 Layers PCB 30.6 x 39.8 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
For those rotary switches that are a dog to solder wires to !
