Super Nintendo Famicom SNES controller to MSX / MSX2 / Sharp X1 X68000 / FM-Towns adapter
Super Nintendo Famicom SNES controller to MSX / MSX2 / Sharp X1 X68000 / FM-Towns adapter
SNES controller can be used on Japanese computers of the 80s-90s.
The circuit is supplied by 5V and the current consumption is < 20mA.
Compatibility:
MSX / MSX 2
Fujitsu FM-77 / FM Towns
NEC PC-88
Sharp X1 / X68000

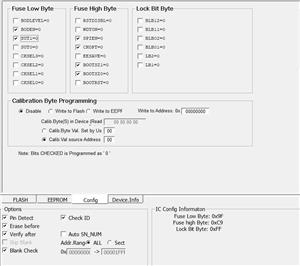

BOM list, firmware and fuse bytes setting in attachment.
Additional items to make your adapter:
https://www.aliexpress.com/item/4000281809514.html?spm=a2g0s.9042311.0.0.74844c4d8RoLg7
Default:
Trigger A is the SNES B button, Trigger B is the SNES X button.
Setup SNES 1~6 are enabled by holding buttons on the SNES controller when turning the computer ON.
1 /FORWARDForward
2 /BACKBackward
3 /LEFTLeft
4 /RIGHTRight
5 +5V+5 VDC (50mA max)
6 /TRG1Trigger A / Output 1
7 /TRG2Trigger B / Output 2
8 OUTPUTOutput 3
9 GNDSignal Ground
Note:
The direction is Computer relative joystick.
Signals 1-2-3-4-6-7 are active Low (internal 10K~22K pull-up resistors exist inside the machine).
Depends on the model, the female D-Sub9 needs trimming with a Dremel tool to fit the joy port.
Thanks to Raphael Assenat for the firmware explanation.
