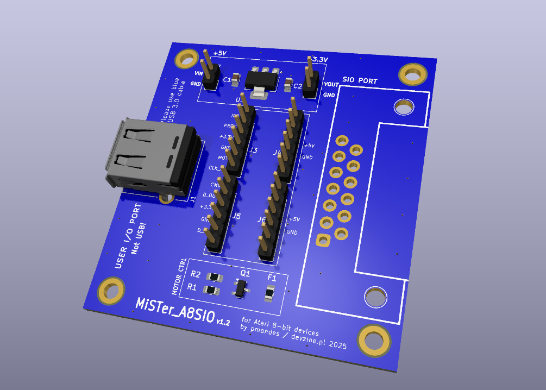

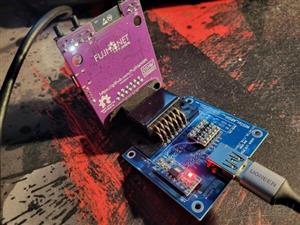

MiSTer_A8SIO
Adapter for the SIO port to connect peripheral devices of the 8-bit Atari to the MiSTer FPGA.
Components
The following modules can be used to build an adapter without using SMD components:
- AMS 1117 3.3V stabiliser module
- 2 x 4ch level shifter module
- USB 3.0 Type A angled socket
- SIO socket

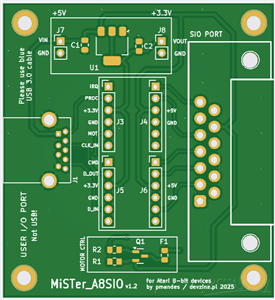

For basic functionality, one level shifter (mounted on J5/J6) and an LDO power supply module (mounted on J7/J8) are sufficient.
The MOTOR CTRL circuit for controlling the tape recorder is optional.

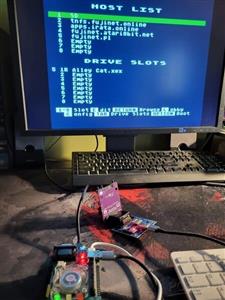

To connect to MisterFPGA, you need a USB3.0 A data transfer cable (blue type A plugs on both sides).

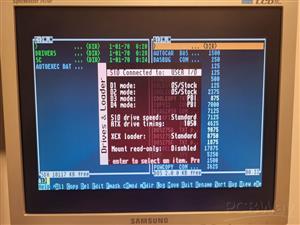

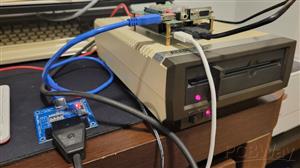

The adapter can ONLY be connected to the User Port on the I/O daughter board.
3D printed SIO Socket:
MiSTer_A8SIO
