Description

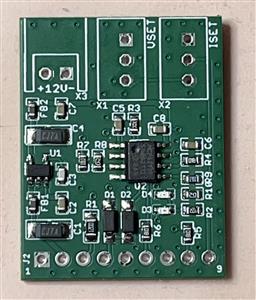

SMPS Dual Loop Feedback Error Amplifier Module
This Design is a Simple Dual Loop Error Amplifier Module for Isolated switch mode Power Supplies using an OptoCoupler for Isolation.
The Module is intended to be used in Voltage & Current Variable Power Supplies. The First application along with my TL494 Controller Module will be the Isolated 70W-100W 400V Variable up2 150mA Grind Tube Supply, as Part of my All-in-One HV Power Supply for Vacuum Tubes: https://youtu.be/Q2iWzojGScw

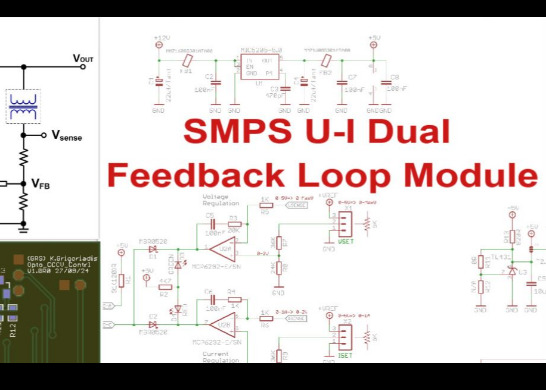

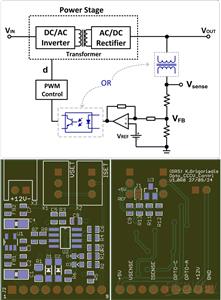

Schematic and Layout
SCH_Opto-CCCV-Contrl_V1.0R0.pdf
May 06,2025
389 views
SMPS Dual Loop Feedback Error Amplifier Module
Simple Dual Loop Error Amplifier Module for Isolated switch mode Power Supplies using an OptoCoupler for Isolation
389
1
0
Published: May 06,2025
Standard PCB
Download Gerber file 0
BOM(Bill of materials)
Centroid file
PCBWay Donate 10% cost To Author
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
