ATmega328PB NANOx(PB) New and Improved Arduino NANO

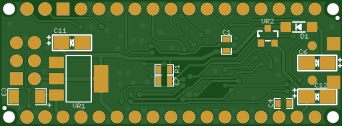

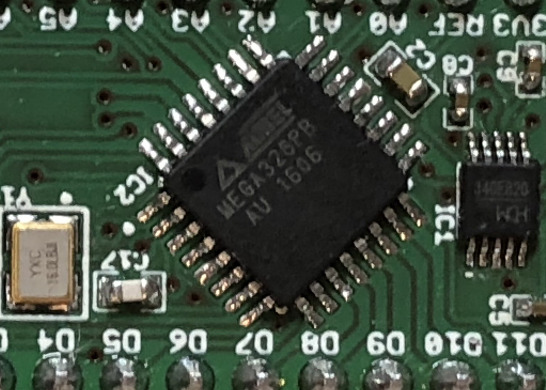

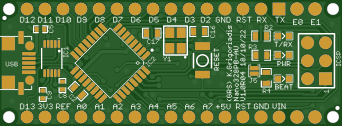

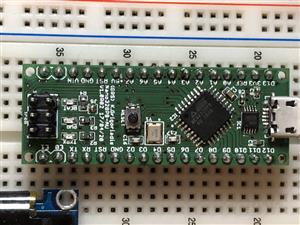

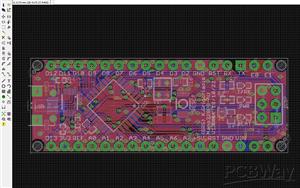

I like the ATmega328 and I use it almost everywhere (except some special cases where I need more Power, then the ESP32 comes to help), it has enough Flash, Ram and Power for the Majority of my Designs. What I always missed was one more of every Interface (UART, SPI, I2C) as well as a couple of more GPIOs in the same TQFP32 Package. Few Years ago the Successor of the venerable 328P, the 328PB hit the Market, but I couldn't find any NANO Version of it (for Bread-boarding) on the Asian Market, so I designed one to fit my needs. Dedicated XTAL with NPO Load Caps, Dedicated 5V and 3.3V Regulators, Optimized Analog Design and the most important all usable GPIOs are broken out.
