Fancy EGS002 Tester with 3 Dedicated Volt Meters
The EGS002 is a driver board specific for single phase Pure Sine inverters. It uses ASIC EG8010 as control chip and IR2110S as a driver chip. The driver board integrates functions of voltage, current and temperature protection, LED warning indication and fan control.Jumper configures 50/60Hz AC output, soft start mode and dead time.

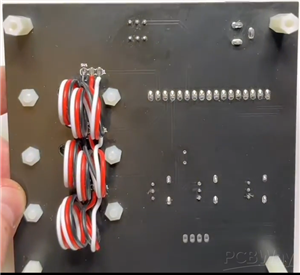

The Shown PCB of this Project is a more Fancy EGS002 Tester that includes 3 Dedicated 0.28" 3Digit Voltmeters on the PCB for showing VFB,IFN,TFB Voltages at the Same time Individually, as all 4 Drive Lines (1LO,2LO,1HO,2HO) and the Fan Drive Pin.
Additionally Scope Test Points are Provided and the usage of the Tester is written thoroughly on the PCB itself.
0.28 Inch 0-100V Mini DC LED Digital Voltmeter : https://www.aliexpress.us/item/1005004603541943.html
Please see my YouTube video on this design at https://www.youtube.com/@KonstantinGrigoriadis
