Description

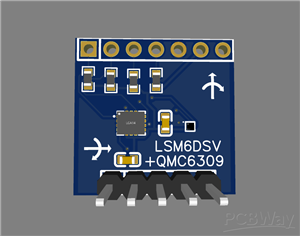

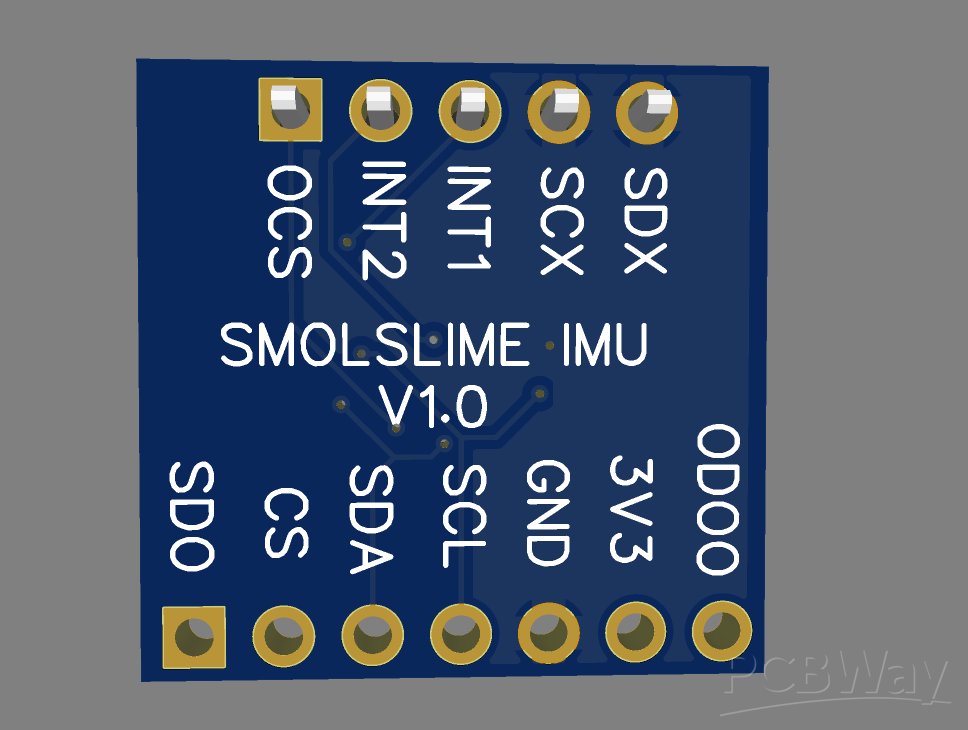

LSM6DSV + QMC6309 Breakout board V1 for SmolSlime Trackers

A prototype LSM6DSV breakout board for smolslime trackers (stacked schematic on nRF52840 boards). Not recommended to purchase in bulk as the modules have not been tested. For any issues if you do purchase; try pulling all unused pins to 3.3v.

For use in the SPI configuration only for now though I2C should theoretically work in configurations where you need the mag.

Made with EasyEDA

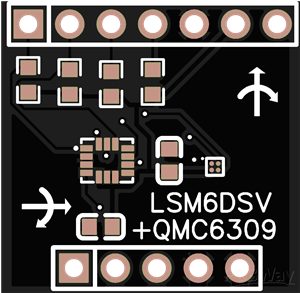

Schematic and Layout

LSM6DSV Breakout V1.json

Download Gerbers Download BOM(Bill of materials)

Apr 07,2026

13 views

LSM6DSV + QMC6309 Breakout board V1 for SmolSlime Trackers

2 Layers PCB 17.5 x 17.5 mm FR-4, 1.6 mm, 1, HASL with lead, Black Solder Mask, White silkscreen

Just a prototype for now - still in testing phase! For use in NRF based smolslime trackers

Published: Apr 07,2026
