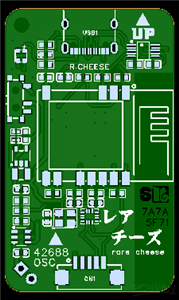

ICM42688 SlimeVR tracker - assembled - RareCheese

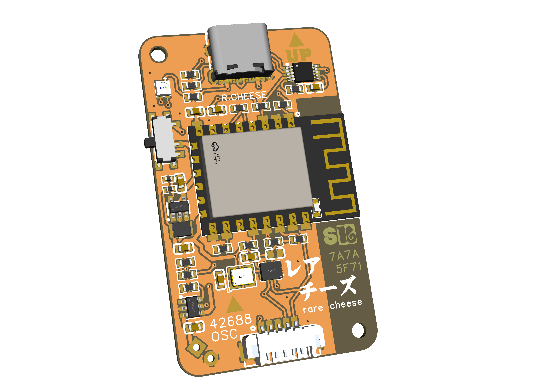

ICM-42688-「RareCheese」(With external oscillator , AUX port and DC-DC Buck power supply) -

When you place an order in PCB, remember change the PCB thickness to 1mm!

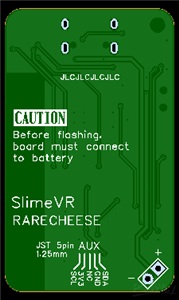

Before flashing the firmware, the board must be connected to the battery.

This design removes the protection diode (to prevent Li-po battery overcharged while uploading firmware), and USB-5V is supplied to the battery via the on-board charging chip TP4057.

The on-board charger will not output voltage without being connected to the battery.

Download Gerbers Download BOM(Bill of materials)

Dec 22,2025

818 views

ICM42688 SlimeVR tracker - assembled - RareCheese

2 Layers PCB 49.8 x 29.8 mm FR-4, 1 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
