Tools, APP Software Used etc.

KiCAD

Kicad

Description

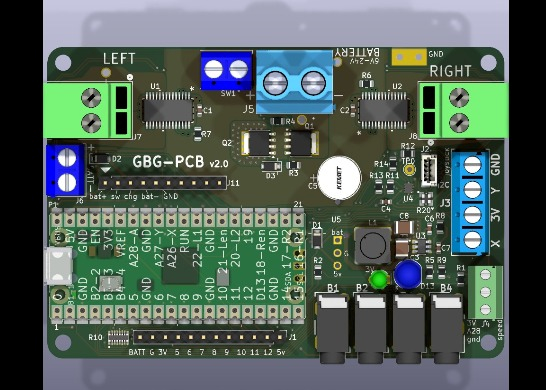

GBG-PCB Go Baby Go - Printed Circuit Board - V2.0

(work in progress, not tested)

This board replaces the control box of a car's original electronics or the separate ESCs and Arduino in the usual joystick modification. The board has screw terminals for connecting to the battery, motors, and the joystick. With this circuit board, a car can be converted to joystick control without any soldering.

Voltage input: 5 to 26 volts (6v, 12v, and 24v lead acid batteries)

Controls two motors: one for each wheel so that the car can turn in place.

New in version 2: A V2 GBG-PCB can be configured with battery, motor, and signal plugs that match the plugs on the common weelye control boxes. This means some cars can be converted to joystick control without cutting any wires.

For the previous versions of the GBG-PCB see https://github.com/gobabygocarswithjoysticks/gbg-pcb/tree/version_1

questions? Please email our support line at gbg-pcb@googlegroups.com

Download Gerbers Download BOM(Bill of materials)

Apr 21,2026

36 views

GBG-PCB Go Baby Go - Printed Circuit Board - V2.0

2 Layers PCB 62.2 x 91.4 mm FR-4, 1 mm, 1, HASL lead free, Green Solder Mask, White silkscreen

A PCB for controlling the motors in a go baby go car with joystick control. https://github.com/gobabygocarswithjoysticks/gbg-pcb
