ESP32-C6 Demo-Board

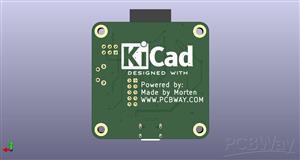

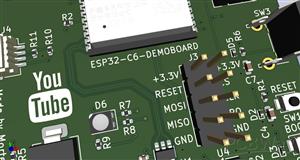

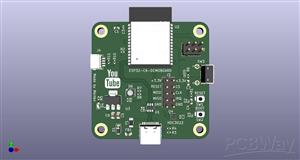

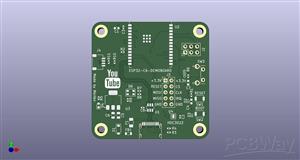

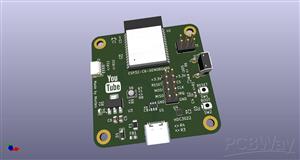

I am working on a demoboard for espressif ESP32-C6.
The ESP32-C6-WROOM-1 module is a multiprotocol powerhouse, designed specifically for the next generation of smart home and IoT systems.
It supports the following wireless protocols:
* Wi-Fi 6
* Bluetooth 5 (LE) : Certified for Bluetooth 5.3
* Zigbee 3.0:
* Thread 1.3:
* Matter:
* ESP-NOW:

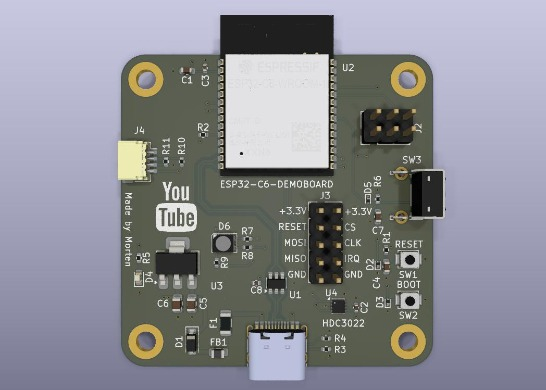

The main feautures for this board are:
- ESP32-C6 WiFi Module - 16 MB flash
- HDC3022 high precission temperature and humidity sensor
- QWIIC connector
- USB-C connector (power / programming)
- Buttons for BOOT and RESET
- User Button
- User RGB LED
- 2x5 pin SPI bus expansion header
- 2x3 pin programming header
- Power LED on 3.3V rail
for the mechanical side of things we will have_
- 4 x 3.2mm mounting holes
- Size 50x50mm
- 4 layer board design
