TCAL9539PWRTexas Instruments
|
x 1 | |
|
|
SM04B-SRSS-TBJST Sales America Inc.
|
x 1 |
|
KiCad 9.0 |
TCAL9539PWR - I2C 16 bit I/O port expander - breakout board
MBOB-TCAL9539PWR

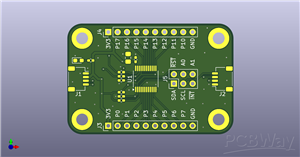

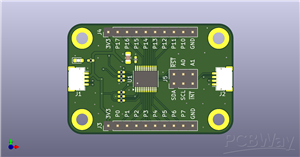

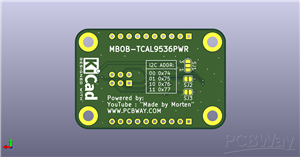

This is a breakout board for the Texas Instruments TCAL9539PWR. This is a 16 bit I/O expander with I2C bus interface. The GPIO functions are a bit more advanced than on standard port expanders. The agile I/O capabilities include latched inputs that i need to investigate for a project were a lot of input are needed.
There is also a video attached to this project, here i will go through the design process in KiCad, both for the schematic design and the PCB layout.
Please get in touch with me if you would like to see a video on the software implementation :-)
TCAL9539PWR - I2C 16 bit I/O port expander - breakout board
