ESP32-S3-WROOM-1-N8Espressif
|
x 1 |
|
KiCad 9.0 |

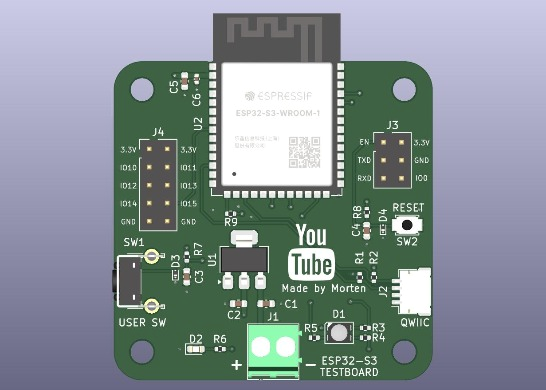

ESP32-S3-SIMPLE TestBoard
Complete step-by-step PCB design process going through the schematic creation, layout, and routing of an
ESP32-S3-SIMPLE prototype Testboard.
The main feautures for this board are:
- ESP32-S3-WROOM Module - 8 MB flash
- Button for RESET
- User Button
- User RGB LED
- expansion header
- programming header
- Power LED on 3V rail
for the mechanical side of things we will have:
- 4 x 3.2mm mounting holes
- Size 45x45mm
- 4 layer board design
ESP32-S3-SIMPLE TestBoard
