The circuit in question is designed to integrate a variety of sensors and communication modules with an ESP32 microcontroller. The ESP32 serves as the central processing unit, interfacing with a MAX30102 pulse oximeter and heart-rate sensor, a MAX30205 temperature sensor, and a Sim A7670c cellular module. Additionally, a 0.96" OLED display is included for output. The circuit is designed for applications that require environmental and physiological monitoring, with the capability to display data and communicate remotely.

Component List

ESP32 38 PINS

Description: A microcontroller with Wi-Fi and Bluetooth capabilities, featuring a wide range of GPIO pins.

Purpose: Acts as the central processing unit for the circuit, managing sensor data, driving the display, and handling communication.

MAX30102

Description: An integrated pulse oximetry and heart-rate monitor sensor module.

Purpose: Measures blood oxygen saturation and heart rate for health monitoring applications.

MAX30205

Description: A human body temperature sensor.

Purpose: Provides accurate body temperature readings.

Sim A7670c

Description: A cellular communication module supporting LTE CAT-M1 & NB-IoT.

Purpose: Enables cellular connectivity for remote data transmission.

0.96" OLED

Description: A small OLED display.

Purpose: Displays information such as sensor readings and system status.

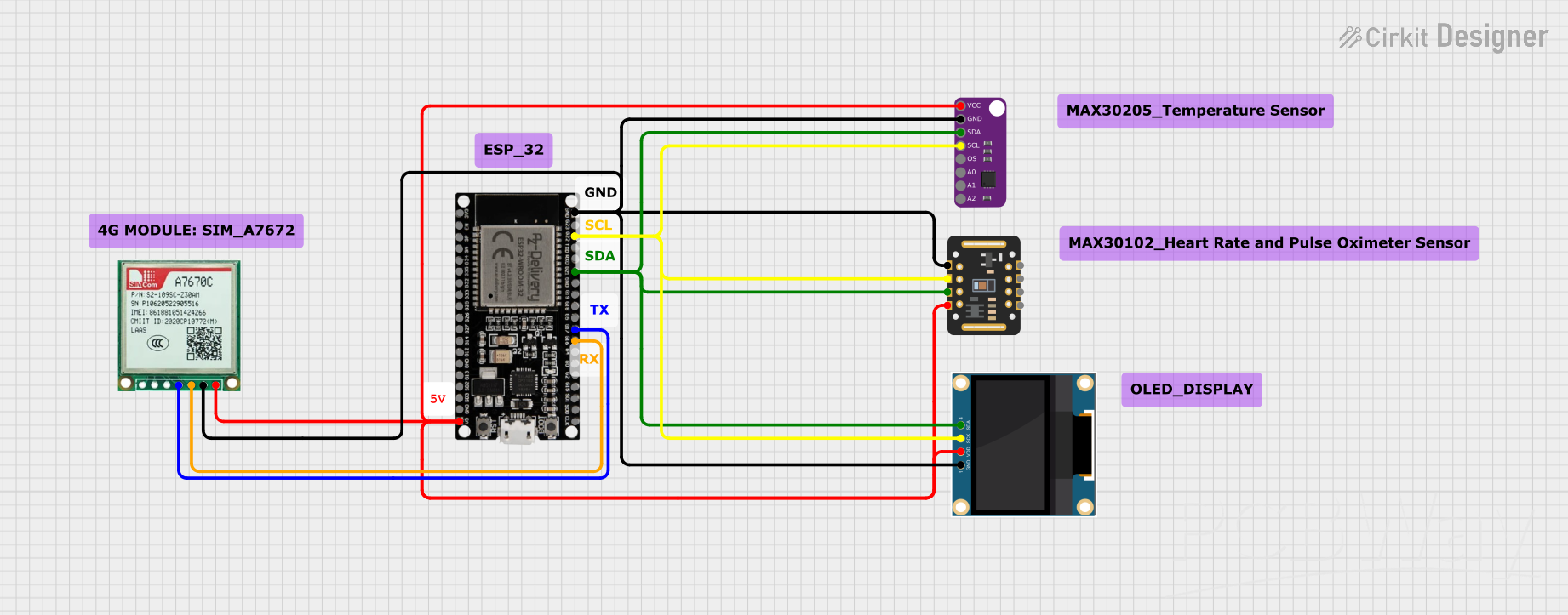

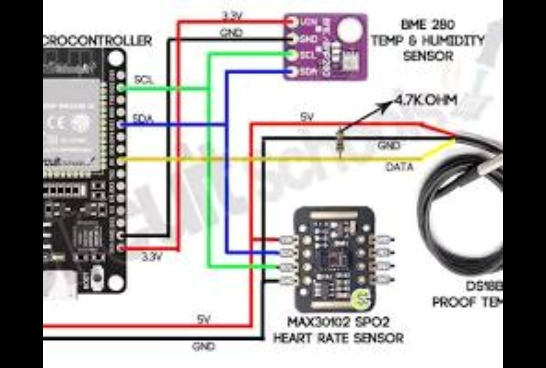

Wiring Details

ESP32 38 PINS

GND: Connected to the ground plane.

G22 (SCL): Connected to the SCL pins of MAX30102, MAX30205, and the SCK pin of the 0.96" OLED display.

G21 (SDA): Connected to the SDA pins of MAX30102, MAX30205, and the SDA pin of the 0.96" OLED display.

G17 (TXD): Connected to the Rx pin of the Sim A7670c module.

G16 (RXD): Connected to the Tx pin of the Sim A7670c module.

5V: Connected to the power supply pins (VIN/VCC/VDD) of MAX30102, MAX30205, Sim A7670c, and the 0.96" OLED display.

MAX30102

GND: Connected to the ground plane.

SCL: Connected to G22 (SCL) on the ESP32.

SDA: Connected to G21 (SDA) on the ESP32.

VIN: Connected to the 5V power supply.

MAX30205

GND: Connected to the ground plane.

SCL: Connected to G22 (SCL) on the ESP32.

SDA: Connected to G21 (SDA) on the ESP32.

VCC: Connected to the 5V power supply.

Sim A7670c

Gnd: Connected to the ground plane.

Rx: Connected to G17 (TXD) on the ESP32.

Tx: Connected to G16 (RXD) on the ESP32.

Vin: Connected to the 5V power supply.

0.96" OLED

GND: Connected to the ground plane.

SCK: Connected to G22 (SCL) on the ESP32.

SDA: Connected to G21 (SDA) on the ESP32.

VDD: Connected to the 5V power supply.

Documented Code

No code has been provided for the microcontrollers in the circuit. The code would typically include initialization routines for each of the sensors and the communication module, data acquisition and processing, display output routines, and communication protocols for sending data remotely. Without the code, we cannot document the software part of the circuit.
