# Desk Buddy v2.0.0 - Complete Documentation

---

1. PROJECT OVERVIEW

Desk Buddy v2.0.0 is a smart desk companion built using the ESP8266 microcontroller. It combines multiple useful features into one compact device, making your desk smarter and more productive.

What It Does:

- Displays real-time date and time in 12-hour format

- Shows live weather updates for your city

- Monitors internet speed (ping)

- Tracks device uptime

- Displays Quote of the Day (one quote per day with smooth scrolling)

- Manages reminders with a web interface (auto-scrolling)

- Tracks water intake with a 45-minute reminder alarm (PWM controlled soft beep)

- Web-based management interface for all features

Why Desk Buddy:

- Productivity: Stay on top of tasks with reminders

- Health: Track water intake with gentle reminders

- Information: Quick access to time, weather, and internet status

- Motivation: Daily quotes to keep you inspired

- Convenience: Manage everything from your browser

---

2. FEATURES

2.1 Display Features:

- Date & Time: 12-hour format with AM/PM, shows day/month/year

- Weather: Real-time temperature with city name

- Internet Speed: Ping monitoring to Google

- Uptime Monitor: Shows device running time (days/hours/minutes)

- Quote of the Day: One unique quote per day with auto-scrolling

- Reminder System: Add/delete reminders via web interface with scrolling display

- Water Tracker: 45-minute reminder with soft PWM buzzer alarm

- Device Info: Shows version and IP address

2.2 Web Interface Features:

- Add Reminder: Add reminders with text and deadline

- View Reminders: See all active reminders with deadlines

- Delete Reminder: Delete individual reminders

- Clear All: Delete all reminders at once

- Log Water: Add 1 glass of water

- Pause/Resume: Toggle water reminder on/off

- Auto-Refresh: Updates every 10 seconds

2.3 Hardware Features:

- PWM Buzzer: Soft, non-irritating beep patterns

- Push Button: Page navigation and alarm stop

- Data Persistence: Saves reminders and water count to EEPROM

- LCD Display: 16x2 with I2C interface

- WiFi Management: Auto-connect with AP fallback

2.4 Technical Features:

- Auto-Update: Weather updates every 5 minutes

- NTP Sync: Accurate time from internet

- Quote of the Day: New quote every day at midnight

- Smart Scrolling: Smooth scrolling for long text

- Error Handling: Graceful failure handling

- Debug Mode: Serial monitor output for troubleshooting

---

4. PIN CONNECTIONS

4.1 Quick Reference:

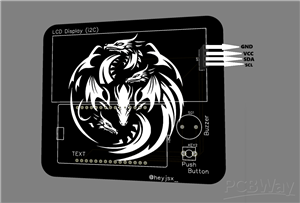

LCD Display (I2C):

- LCD VCC -> 3.3V or VIN (Red wire)

- LCD GND -> GND (Black wire)

- LCD SDA -> D2 (GPIO4) (Blue wire)

- LCD SCL -> D1 (GPIO5) (Green wire)

Push Button:

- Button Signal -> D5 (GPIO14) (Yellow wire)

- Button Ground -> GND (Black wire)

Buzzer:

- Buzzer Positive (+) -> D4 (GPIO2) (Orange wire)

- Buzzer Negative (-) -> GND (Black wire)

Wiring Summary:

ESP8266 NodeMCU -> Components

3V3/VIN -> LCD VCC (Red)

GND -> LCD GND (Black)

GND -> Button GND (Black)

GND -> Buzzer GND (Black)

D1 (GPIO5) -> LCD SCL (Green)

D2 (GPIO4) -> LCD SDA (Blue)

D5 (GPIO14) -> Button Signal (Yellow)

D4 (GPIO2) -> Buzzer Positive (+) (Orange)

---

6. SOFTWARE SETUP

6.1 Arduino IDE Installation:

1. Download from arduino.cc

2. Install for your operating system (Windows/Mac/Linux)

6.2 Add ESP8266 Board Package:

1. Open Arduino IDE

2. Go to File -> Preferences

3. Add this URL to "Additional Boards Manager URLs":

  https://arduino.esp8266.com/stable/package_esp8266com_index.json

4. Click OK

5. Go to Tools -> Board -> Boards Manager

6. Search "esp8266"

7. Install "esp8266 by ESP8266 Community" (version 3.0.2 or later)

6.3 Required Libraries:

Install via Sketch -> Include Library -> Manage Libraries:

LiquidCrystal I2C by Frank de Brabander - LCD control

WiFiManager by tzapu - WiFi configuration with AP fallback

TimeLib by Michael Margolis - Time management

NTPClient by Fabrice Weinberg - Time synchronization

ArduinoJson by Benoit Blanchon - JSON parsing for APIs

EEPROM - Built-in (ESP8266) - Data storage

---

7. API CONFIGURATION

OpenWeatherMap API Setup:

Step 1: Create Account

1. Go to OpenWeatherMap

2. Click "Sign Up" (top right)

3. Fill registration form

4. Verify your email

Step 2: Get API Key

1. Login to your account

2. Go to "API Keys" section

3. Find your default API key (or create new)

4. Copy the API key

Step 3: Update Code

In your code, update this line:

const char* weatherAPI = "http://api.openweathermap.org/data/2.5/weather?q=YOUR_CITY&appid=YOUR_API_KEY&units=metric";

Step 4: Change City Name and API Key(MUST)

Replace "YOUR_CITY" with your city name and "YOUR_API_KEY" with your API Key

---

8. INSTALLATION GUIDE

8.1 Hardware Assembly:

Step 1: Connect Components

1. LCD Display:

  - VCC -> 3.3V/VIN

  - GND -> GND

  - SDA -> D2 (GPIO4)

  - SCL -> D1 (GPIO5)

2. Push Button:

  - Pin 1 -> D5 (GPIO14)

  - Pin 2 -> GND

3. Buzzer:

  - Positive (+) -> D4 (GPIO2)

  - Negative (-) -> GND

8.2 Software Installation:

Step 1: Download the Code

Copy the complete Desk Buddy code into Arduino IDE.

Step 2: Configure Settings

WiFi Credentials:

const char* ssid = "Your_SSID";    // Your WiFi name

const char* password = "Your_password"; // Your WiFi password

Weather API:

const char* weatherAPI = "http://api.openweathermap.org/data/2.5/weather?q=YOUR_CITY&appid=YOUR_API_KEY&units=metric";

Step 3: Upload Code

1. Select board: Tools -> Board -> NodeMCU 1.0 (ESP-12E Module)

2. Select port: Tools -> Port -> COMx

3. Click Verify (✓) to compile

4. Click Upload (→) to upload

5. Wait for "Done uploading" message

8.3 First Boot Sequence:

LCD Startup Sequence:

1. "Desk Buddy" appears

2. Version number shows (v2.0.0)

3. "Connecting to [WiFi]"

4. "WiFi Connected!" with IP address

5. "Press Button to change page"

Serial Monitor Output:

========================================

  Desk Buddy v2.0.0 Starting...

========================================

✓ Button initialized on D5 (GPIO14)

✓ Buzzer initialized on D4 (GPIO2) with PWM

✓ WiFi Connected!

 IP: 192.168.1.100

✓ Web server started

✓ Visit: http://192.168.1.100

✓ Weather data updated

✓ Ping: 45ms

✓ Loaded 0 reminders from EEPROM

========================================

  System Ready!

========================================

8.4 WiFi Fallback Mode (AP Mode):

If WiFi credentials fail:

1. ESP8266 creates AP: "DeskBuddy"

2. AP IP: 192.168.4.1

3. Connect to "DeskBuddy" from your device

4. Configure WiFi via captive portal

---

9. WEB INTERFACE GUIDE

9.1 Accessing the Web Interface:

1. Find IP Address:

  - Check Page 8 (Device Info) on LCD

  - Or check Serial Monitor output

2. Open Browser:

  http://[YOUR_IP_ADDRESS]

  Example: http://192.168.1.100

9.2 Web Interface Features:

Add Reminder:

1. Type your reminder in the text box

2. Select a deadline date (YYYY-MM-DD)

3. Click "Add Reminder" button

4. Reminder appears in the list and on LCD

View Reminders:

- All active reminders displayed

- Shows text and deadline

- Count badge shows total reminders

- Auto-refreshes every 10 seconds

Delete Reminder:

1. Click ✕ button next to a reminder

2. Confirm deletion

3. Reminder disappears from list and LCD

Clear All:

1. Click "Clear All" button

2. Confirm deletion

3. All reminders removed

Water Tracker Controls:

- Log Water: Adds 1 glass, resets 45-min timer

- Pause/Resume: Toggle reminders on/off

- Status: Shows Active/Paused state

- Count: Shows total glasses today

Pages Overview:

Press the button to cycle through 8 pages:

Page 1: Date & Time

Line 1: 15 Dec 2024

Line 2: 02:30:45 PM

Page 2: Weather

Line 1: Weather

Line 2: Chennai 32.5°C

Page 3: Internet Speed

Line 1: Internet Speed

Line 2: Ping: 45ms

Page 4: Uptime

Line 1: Uptime

Line 2: 2d 14h 32m

Page 5: Quote

Line 1: Quote

Line 2: The only way to do... (scrolling)

Page 6: Reminder

Line 1: Reminder 1/3

Line 2: Submit report [2024-12-20] (scrolling)

Page 7: Water Tracker

Line 1: Water Tracker

Line 2: Next: 32min

Page 8: Device Info

Line 1: Desk Buddy v2.0.0

Line 2: IP: 192.168.1.100

---

CONCLUSION

Summary:

Desk Buddy v2.0.0 is a feature-rich smart desk companion that successfully combines multiple useful functionalities into a single, compact device. It leverages the power of the ESP8266 microcontroller to provide:

- Real-time Information: Date, time, weather, and internet speed at a glance

- Smart Reminders: Web-based management with auto-scrolling display

- Health Tracking: Water intake reminder with gentle PWM buzzer

- Daily Motivation: One unique quote per day with smooth scrolling

- User-Friendly Interface: Easy-to-use web interface for management

- Data Persistence: Reminders and water count saved to EEPROM

- WiFi Fallback: AP mode for easy configuration

- Software Buzzer: PWM controlled soft, non-irritating beep patterns

Key Achievements:

- 8 Display Pages: Comprehensive information display

- Web Interface: Full management from any browser

- Scrolling Features: Smooth text scrolling for long content

- Quote of the Day: Daily inspiration without repetition

- Water Tracker: Health reminder with soft alarm

- Button Feedback: Short beep on button press

- Error Handling: Graceful failure handling

Future Enhancements:

- Mobile App: Dedicated mobile app for management

- Push Notifications: Send reminders to phone

- Custom Themes: Change color schemes

- Statistics: Daily/weekly reminder and water stats

- Night Mode: Dim display for night use

- Voice Control: Voice commands via Alexa/Google

---

Desk Buddy v2.0.0 is a complete, functional, and user-friendly smart desk companion that enhances productivity and brings convenience to your workspace. With its combination of practical features, easy-to-use interface, and reliable performance, it's the perfect addition to any desk setup.

---

Documentation Version: 1.0

Firmware Version: v2.0.0

Last Updated: 2026

Thank you for choosing Desk Buddy!
