Commodore Amiga MIDI Serial Interface for Roland MT-32 / SC-88VL synthesizer (SMT version)
1 × MIDI IN, 1 × MIDI OUT.
The PCB is contained inside serial port DB25 plug.
Fast optocoupler with high current transfer ratio.
Fully compatible with existing software.
Software accessing MIDI through camd.library do not need any drivers.
This PCB version is SMT parts only.
Please mind the double footprint: MAX232A can be either 16-SOIC 0.154", 3.90mm and 0.295", 7.50mm Width.
Compatible Roland MT-32, SC-88VL and raspberry implementations such as MT32-Pi.
Tested with SCUMM and Sierra games.
Code
camd.library
http://aminet.net/mus/midi/camd.lha

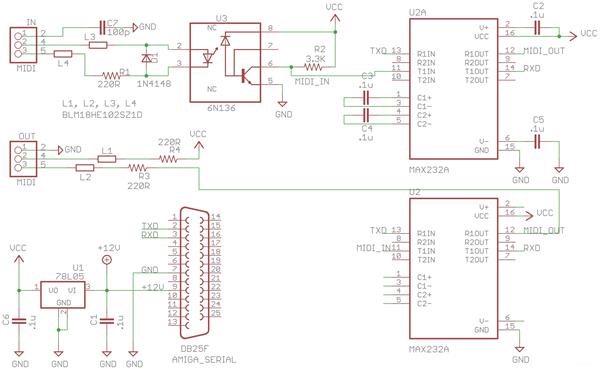

Schematic and Layout
schematic
Sep 19,2022
2,032 views
Commodore Amiga MIDI Serial Interface for Roland MT-32 / SC-88VL synthesizer (SMT version)
Compatible Roland MT-32, SC-88VL and raspberry implementations such as MT32-Pi
2032
5
0
Published: Sep 19,2022
Standard PCB
BOM(Bill of materials)
PCBWay Donate 10% cost To Author
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-NonCommercial-ShareAlike (CC BY-NC-SA)
License.
