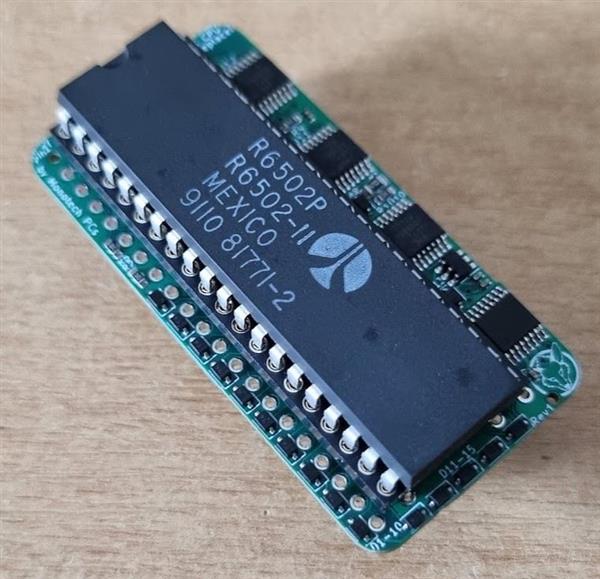

Commodore 64 128 16 Plus/4 1551 MOS CPU Replacement 6510 8501 7501 8502 with 6502
Original project by Monotech:
https://github.com/monotech/MOS_CPU_Replacer

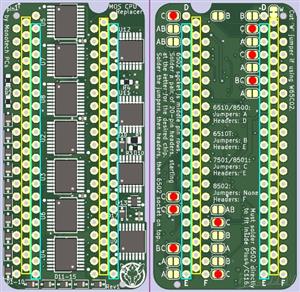

Replace rare/expensive/unreliable MOS CPUs:
- 6510 (C64) (8500 is same as 6510)
- 6510T (1551 floppy drive)
- 8501 (C16, C116, Plus/4) (7501 is same as 8501)
- 8502 (C128)
BOM list in the attachment.
R6502 CPU can be found at:
Oct 03,2022
2,599 views
Commodore 64 128 16 Plus/4 1551 MOS CPU Replacement 6510 8501 7501 8502 with 6502
Created by Monotech PCs - MOS CPU Replacer
Replace rare/expensive/unreliable MOS CPUs
