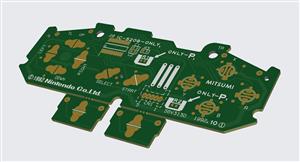

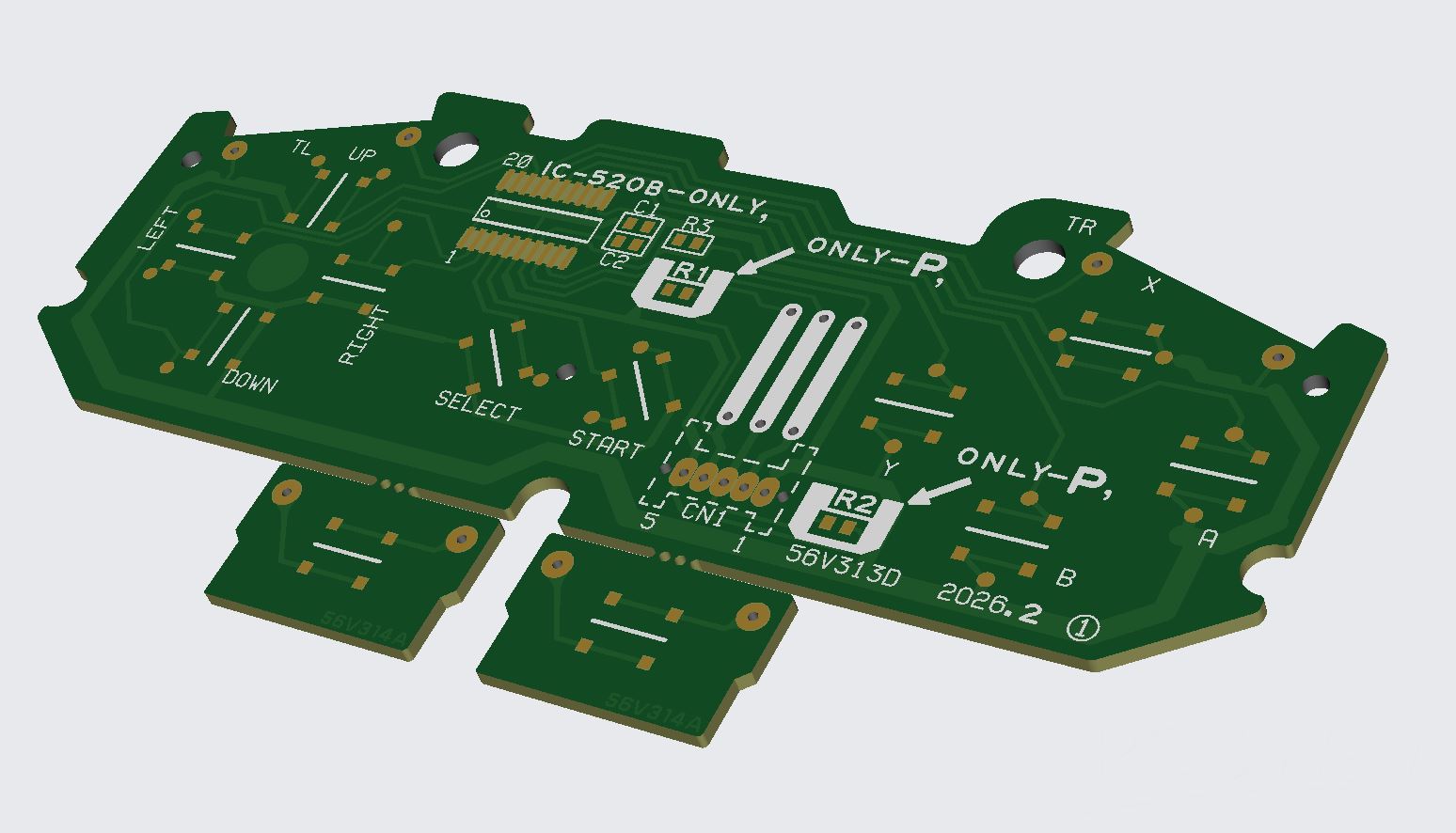

As a replacement for worn or corroded controller PCBs. The replica is as close to the original as possible. The difference is that no carbon resistors are used. For this reason, you need 3 additional 270 Ohm resistors (SMD 0603 or THT) to assemble this circuit board.

• Modified for use with tactile buttons (Alps SKRRAAE010)

How to order:

You must set the following options before adding the project to your shopping cart

Thickness: 1.6mm

Surface finish: HASL

How to build:

Simply transfer the parts from your defective controller PCB to this circuit board and solder in the additional 270 ohm resistors and tactile buttons. You can use the existing shoulder buttons PCBs or also convert to tactile ones. The footprints marked “only-P” are only populated on PAL region controllers. If these resistors are not present on your donor controller, they remain empty.
