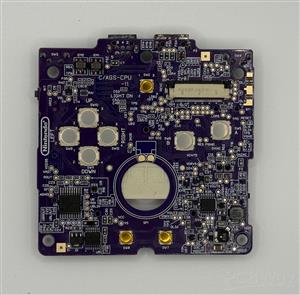

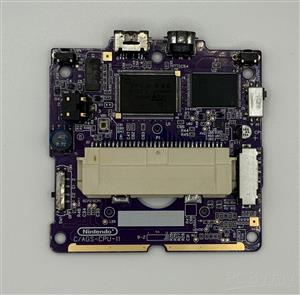

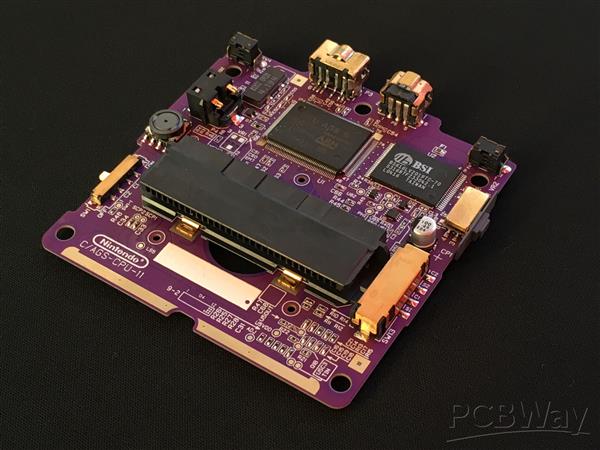

Replacement PCB for defective or corroded PCBs or because you simply want a different color.

The basis is the project by morinaka on oshwhub which was created with the schematics of gekkio with the following changes to be closer to the original.

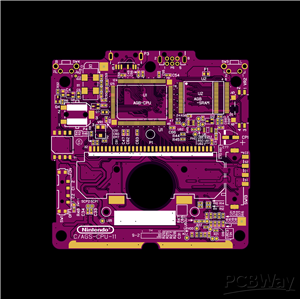

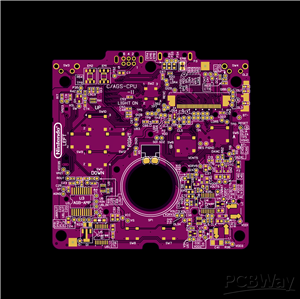

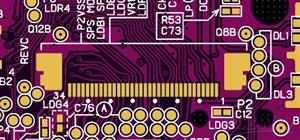

• additional Q12B Testpoint near the FPC (for a tidier ips installation)
• board outline fixed
• silkscreen reworked
• routing reworked
• gnd planes reworked
• few footprints reworked

How to order:

You must set the following options before adding the project to your shopping cart

Layers: 4 Layers (close the layer stackup popup that opens afterwards)

Thickness: 0.8mm

Surface finish: ENIG or HASL (is only cosmetic, take what you like)

You can choose between "Only PCB" or "PCB+Assembly" to get a pre assembled PCB so that you only have to install a few components yourself

PCBWay has a problem processing the EasyEDA gerber automatically, therefore 4 layers must be selected manually. If the advanced tab for the other PCB colors is not displayed, put the project in the shopping cart and ask support to enable the advanced tab for it.

How to build:

Move parts from an Game Boy Advance SP AGS-CPU-11 donor Board. If you have a different board version, you may need a few additional components or have a few components left over. You'll find everything you need in the BOM which is available for download.
