Picoboot Flex for GC DOL-101

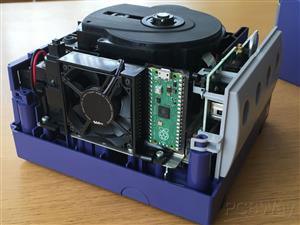

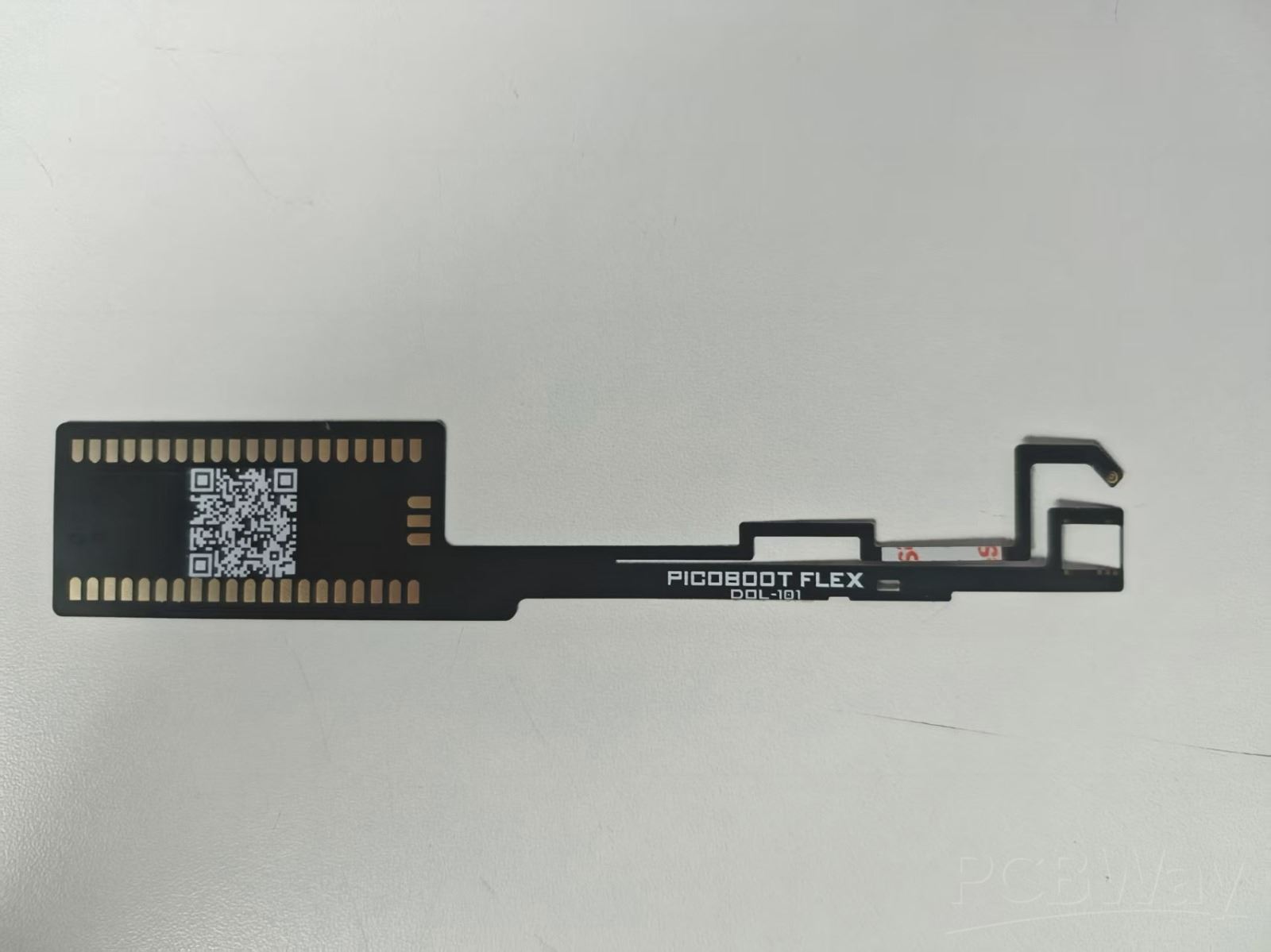

A flex ribbon to simplify the Picoboot Installation on the Gamecube DOL-101. This version already uses the VSYS pin for the 5V power supply. Works with Picoboot v0.4 or higher.
Ordering Details:
PCB Type: Flexible PCB
Thickness: >0.16mm
Soldermask (Coverlay)/Silkscreen: according to your liking
Stiffener: No
3M Tape: Tesa8853 or Tesa8854 / both sides
Other Special request: stiffener as in layer dol-101-flex_stiffener.gbr
Works with the following Raspberry Pi:
- Raspberry Pi Pico
- Raspberry Pi Pico W
- Raspberry Pi Pico 2
- Raspberry Pi Pico 2 W

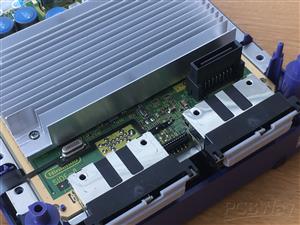

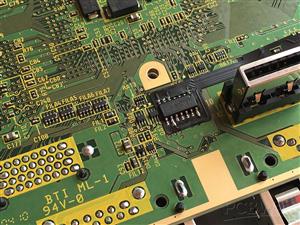

Installation tips and more pictures are available in the Github [WIP]
Picoboot Flex for GC DOL-101
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
PCBWay is not responsible
for issues caused by unsuitable parameter selections.
For more important ordering information, please refer to
Read More
