NanoArduino
|
x 1 | |
|
|
DB -15 HD (VGA connector) |
x 1 | |
|
|

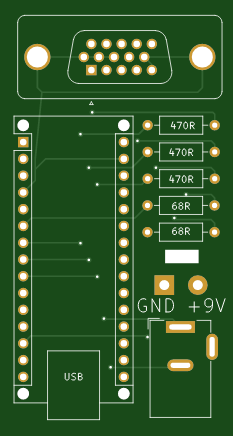

Resistors - specified on board |
x 1 | |
|
|
Barrel Jack (optional) |
x 1 | |
|

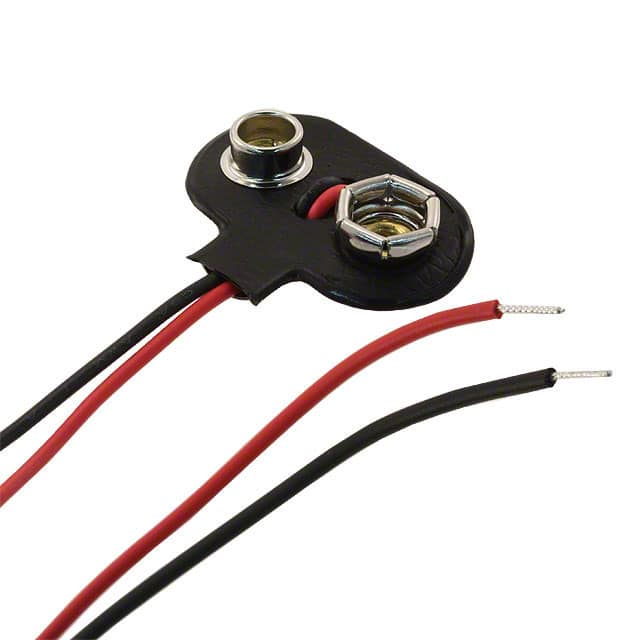

235Keystone Electronics
|
x 1 |
|
KiCADKicad
|
15kHz Monitor Tester Carrier Board for Atari ST and Amiga
Atari ST and Amiga computers used a frequency that many modern VGA monitors cannot deal with - 15kHz horizontal frequency. Even when you physically adapt the monitor the fit the computer plug you will usually see no picture or a "Sync out of Range" message. There are some CRTs and even newer LCDs that can accept the 15kHz signal however, once you build an Atari/Amiga to VGA cable or adapter.
There are some lists of monitors known to work - for instance:
15khz.net
15khz.wikidot.com
However, many monitors are not listed. Therefore there is a great GitHub project that programs an Arduino to output 15kHz VGA so you can tell if your monitor accepts the signal. There are even some carrier boards for the Arduino:
http://www.gammon.com.au/forum/?id=11608
https://github.com/planeturban/15khzvgatester

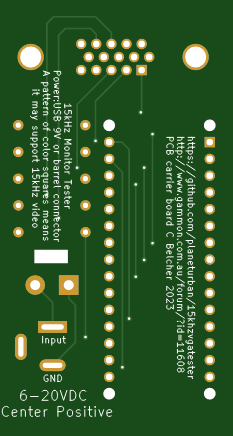

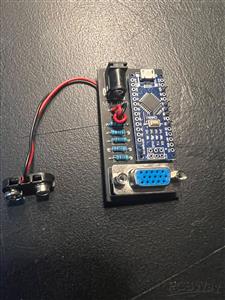

I had Arduino Nanos lying around that I wanted to use - so I made this carrier which I can power from a USB power bank, 9v battery, or a barrel jack.
Use the color software from the 15khzvgatester to upload to your Arduino.
You can find the female DB-15HD jack yourself or even solder on to half of a VGA cable.

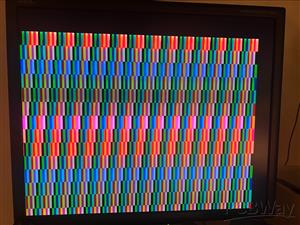

A successful test is seeing the pattern of colored boxes as above - the monitor is likely to display from an Atari ST or Amiga.
Sync out of range errors, half the screen filling, no picture, etc are very unlikely to work.
