Components

	Components labeled on board	x 1
	CR2032 Battery Holder (Open) Coin, 20.0mm 1 Cell PC Pin Various	x 1
	DB-9 male solder cup connector	x 1

Tools, APP Software Used etc.

KiCAD

Kicad

Description

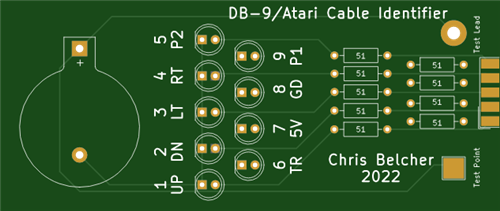

DB-9 Atari Commodore Joystick Cable Tester

Got a broken retro joystick? Got replacement joystick cables but you don't know what color wires go to what pins?

Here's the solution!

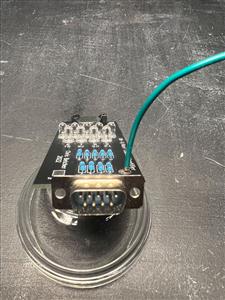

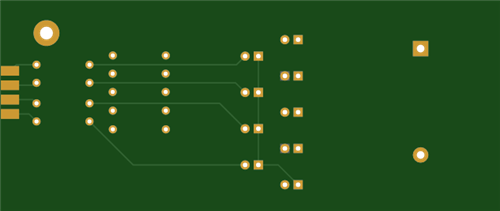

Powered by a 3v CR2032 battery - plug the joystick into the male connector on the board. Touch each wire to the test pad or solder on a probe wire and touch each of the cable's wires. The corresponding LED for that pin should light up. No light? Unconnected or broken wire.
