Description
Cheap NESpad to Atari 7800

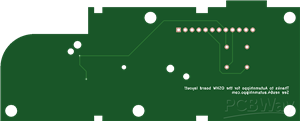

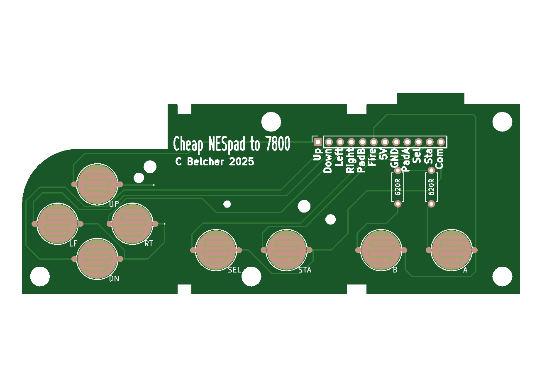

This is a pcb that should fit in many NES gamepad cases - both original and reproduction and let you add a 9 pin cable and 2 620ohm resistors and use it with an Atari 7800 with two button functionality. It will also work on an Atari 2600 but both buttons are mapped to the single fire button.
Solder the cable from the underside and route it around the strain relief to exit the case.
The pcb design and shape are derived from the open source hardware at nes64.autumnhippo.com
Jul 14,2025
327 views
Cheap NESpad to Atari 7800
Replaces the PCB in NES controllers and lets you use A and B as the 2 Atari 7800 buttons
