Components
|
SF2321DRFMi
|
x 1 | |
|
132366-10AMPHENOL RF
|
x 1 | |
|
142-0701-851Cinch Connectivity Solutions Johnson
|
x 1 |
Description

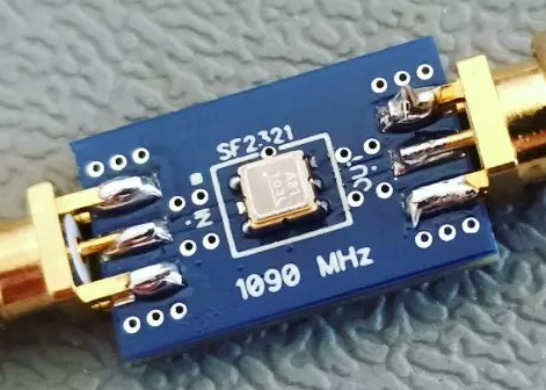

1090 MHz filter board with SMA edge connectors for ADS-B reception
This project is a small adapter board for RFMi SF2321D SAW filters with 2 SMA edge connectors.
Besides the main SF2321D SAW filterm only two SMA edge connectors of your choice are needed. Even though this PCB is used at 1090 MHz, it is perfectly okay to be manufactured on FR4 material. This is because due to the very short trace length (< 1/20th lambda), the traces are not considered to be a transmission line.
Aug 10,2023
504 views
1090 MHz filter board with SMA edge connectors for ADS-B reception
This project is a small adapter board for RFMi SF2321D SAW filters with 2 SMA edge connectors. Perfect for ADS-B reception.
