Components

	636101111001 Würth Elektronik	x 2
	560112132023 Würth Elektronik	x 4

Description

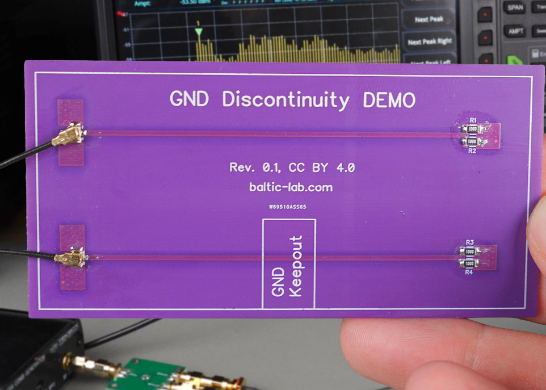

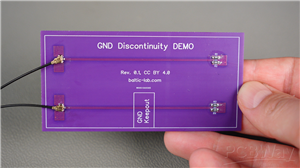

Ground Interruption EMC Demonstration PCB

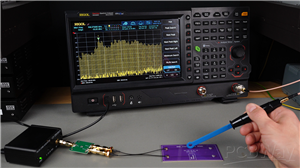

A custom test PCB for EMC demonstrations with two identical traces, one of which runs above a deliberately placed gap in the ground plane.

J1, J2: Würth UMRF Connector

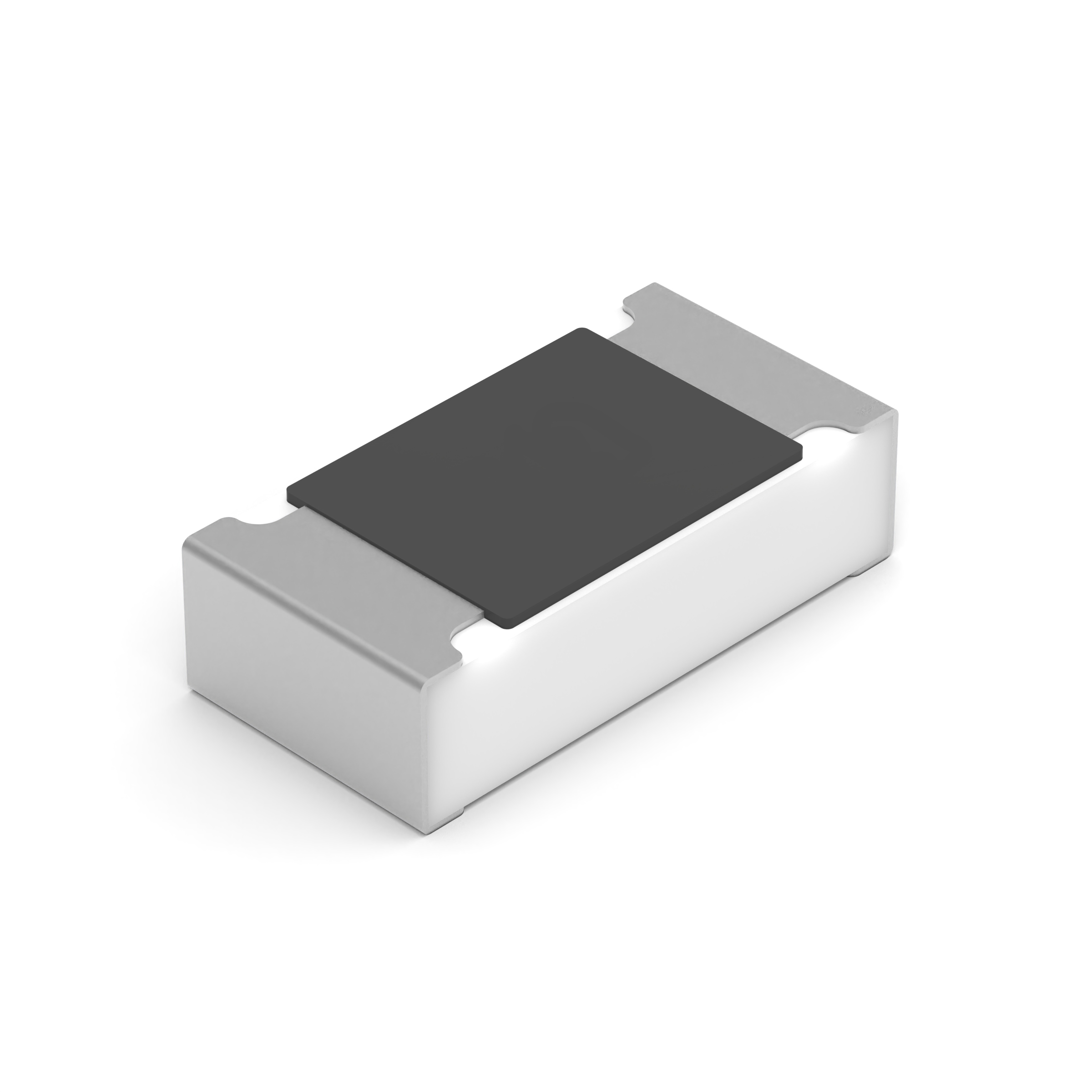

R1-R4: 100 Ohm 1206 Resistor

Download Gerbers Download BOM(Bill of materials)

Oct 18,2025

546 views

Ground Interruption EMC Demonstration PCB

A custom test PCB for EMC demonstrations with two identical traces, one of which runs above a deliberately placed gap in the ground plane.
