By embedding copper blocks, copper bars, or high-power shunt resistors inside the PCB, the effective conductor cross-section can be significantly increased, thereby reducing electrical resistance. In high current PCB layouts handling 10A–50A or more, this structure helps reduce voltage drop and minimize power loss along the current path.

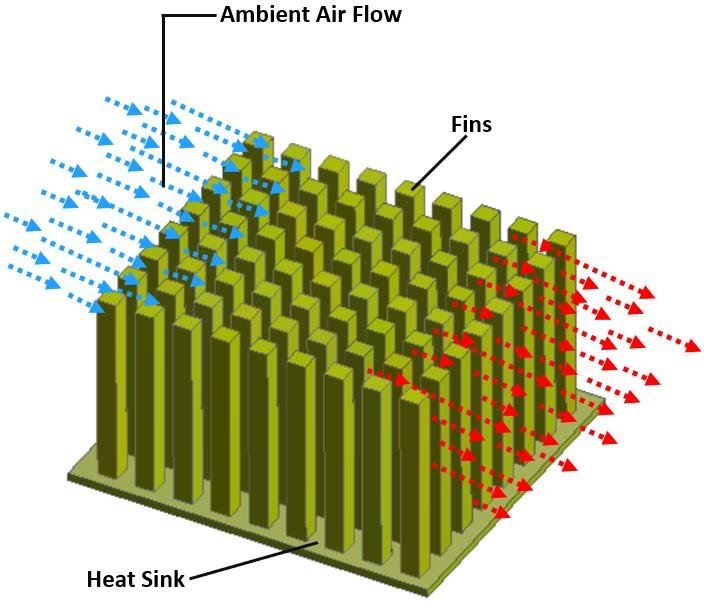

Embedded components are typically placed close to internal copper planes or thermal layers, creating a more efficient heat transfer path. Compared with traditional surface-mounted components, heat can spread more quickly through the internal copper structure of the PCB. This can improve overall thermal dissipation efficiency by approximately 15–25%, helping maintain lower operating temperatures for power devices in high current PCB designs.
Embedding power paths or passive components within the PCB reduces the number of surface-mounted components and routing area. This allows the PCB to handle higher current levels within the same board size, which is particularly valuable for power modules, inverters, battery management systems (BMS), and motor drive circuits that require compact high current PCB layouts.
Embedded structures shorten high-current loop paths and reduce loop area, thereby lowering parasitic inductance and resistance. This is especially beneficial in switch-mode power supplies (SMPS) and high-frequency power conversion circuits, where reduced parasitics can help minimize switching noise and EMI.
In high current PCB designs, embedded components are typically high-power passive devices, such as: Current shunt resistors, Power resistors (≥5W), Decoupling capacitors. Embedding active components is possible but usually increases manufacturing complexity and cost.
A well-designed PCB stack-up is critical for high current PCB layout. Embedded components should be placed close to power or ground planes to reduce impedance and improve thermal performance. For high current paths, 2 oz (70 µm) or thicker copper layers are recommended, and in some cases copper inlay or embedded copper bars can be used to further increase current carrying capability.
Implementing embedded components typically requires collaboration with the PCB manufacturer and the use of advanced fabrication processes, such as: Laser drilling, PCB cavity formation, Copper inlay structures. These processes can achieve fine trace widths of around 3 mil (≈75 µm) while ensuring the structural stability and electrical reliability of embedded components in high current PCB layouts.
As high-power electronic systems face increasingly demanding high-current requirements, traditional approaches such as increasing copper thickness or widening PCB traces are approaching their practical limits. Embedded component technology integrates critical power paths directly into the PCB lamination structure, fundamentally optimizing current flow and thermal dissipation channels. This approach has become a key development direction for overcoming power density limitations and improving overall system reliability.
