X-Y Plotter

Hi,

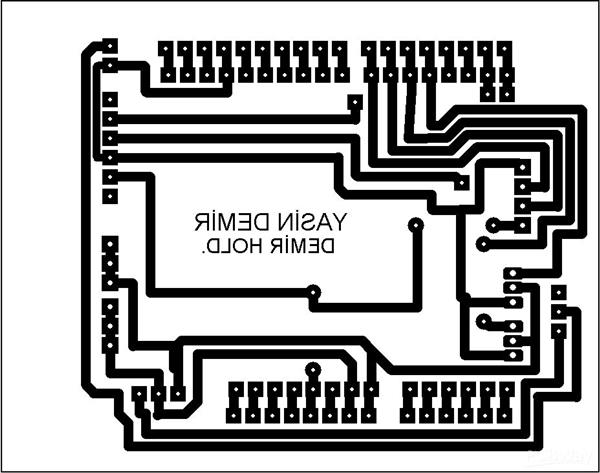

We are Turkey, Diyarbakır Dicle University Electrical and Electronics Engineering students of 4th grade. We make projects with our own means. We made a project that can draw on X and Y axes. Some of the software from the internet, we did some of our own. In this project with Arduino and Processing, it was aimed to make vector drawings. We drew the cards used in this project with Proteus ourselves and printed them on the plate using iron. After this project, we can vector the images we want to draw on any surface (glass, wall, wood etc.). We made the slot with the 3D printer by ourselves. We cut and painted the board on which the system is connected. All was done on our own hand. Since we are a student, it was very costly for us to print and assemble the cards. We want you to sponsor us. Can you help me?


Details about the project;


1. In this project, it is aimed to make the desired vector drawings with millimetric adjustment.

2. Arduino Uno and Arduino Motor Shield are used.

3. GT2 Belt and pulley are used to carry the part where the pen is.


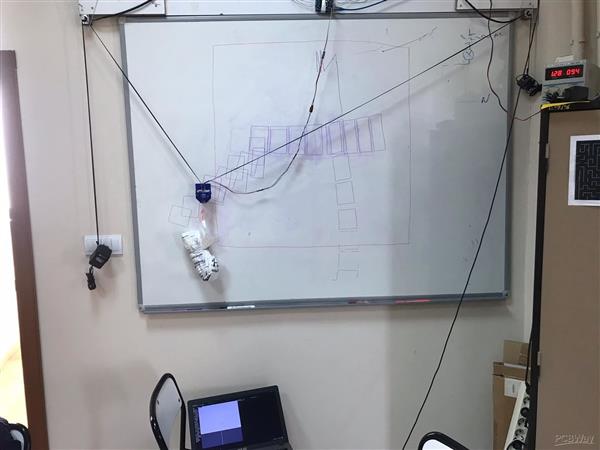

Images of the project are attached.


Arduino Uno;







Good work.

Thanks.


Arjin KIRAN

Emrullah KAZAK


İn TURKEY.
