Z573M Nixie Module

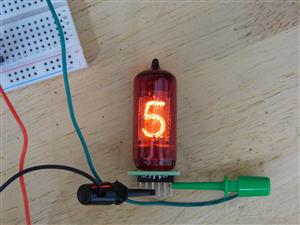

A small PCB to hold a Z573M Nixie tube that plugs into the Clock PCB. The Z573M has the proper numeral 5, not the upside down 2.
The Clock PCB project is located here.

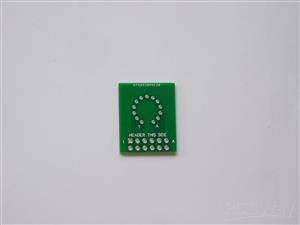

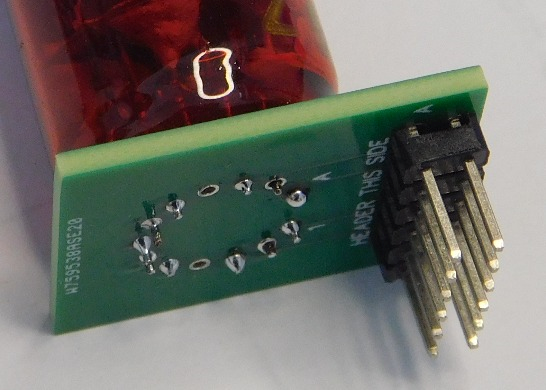

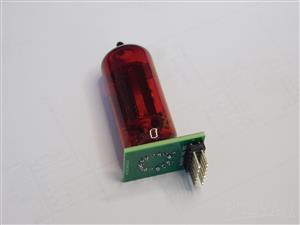

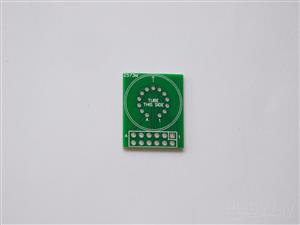

Each PCB, four are required for the Clock PCB, has only 2 parts, the tube and a 2x6 2.54 pitch male header. This plugs into the Clock PCB. Tubes are soldered directly to the PCB, no sockets are used, and the reason for the modular design is it is easier to swap out tubes if needed.
I purchased the tubes on Ebay as NOS (New Old Stock).
Z573M Nixie Module
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
