Arduino UNO Bootloader Burner Shield

This is a simple and very easy project for those that need to burn the Arduino UNO bootloader on ATMEGA328P ICs.

I made this after seeing several online videos showing the process, but used a breadboard, jumper wires, and a few parts for the oscillator circuit. So I figured, why not just fabricate a board, or rather a "shield" for this.

Schematic and Layout

Schematic for Arduino UNO Bootloader Burner Shield

Schematic Arduino Bootloader Burner Shield.pdf

Download Gerbers Download BOM(Bill of materials)

Dec 24,2025

15 views

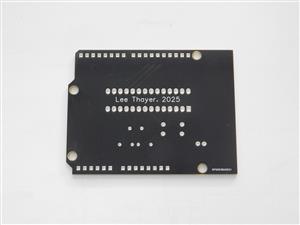

Arduino UNO Bootloader Burner Shield

2 Layers PCB 53.3 x 68.6 mm FR-4, 1.6 mm, 1, HASL with lead, Black Solder Mask, White silkscreen

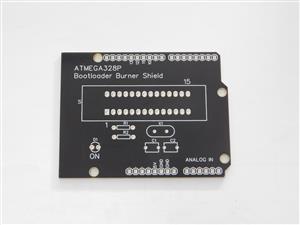

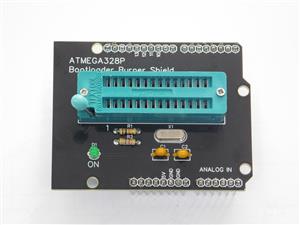

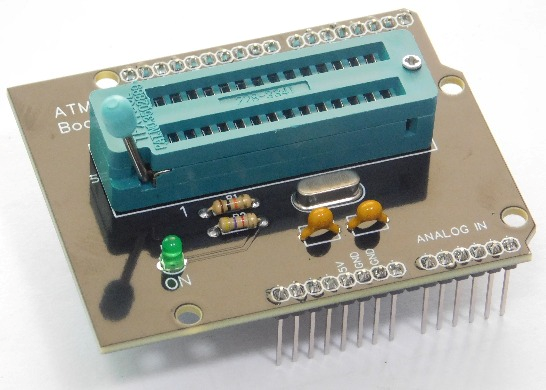

Arduino UNO Bootloader Burner Shield, easy to assemble, minimal parts required.
