Description

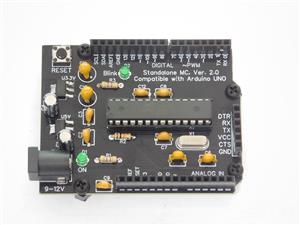

Standalone Arduino UNO Ver. 2

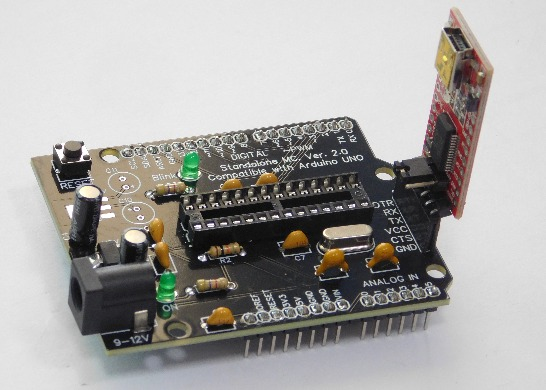

A standalone Arduino UNO that features a female header for plugging in a USB to serial module for easy of loading sketches, no need for 5 wires cluttering up your project.

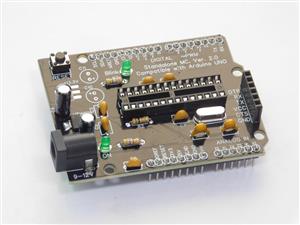

This PCB allows you to customize the headers, male headers can be used on the bottom so the board can be plugged into another project. Female headers on top of the board,, plus you can have various colors or even extra long pin headers.
Schematic and Layout
Schematics Standalone Arduino UNO Ver. 2
schematics Arduino Standalone Ver. 2.pdf
Dec 23,2025
17 views

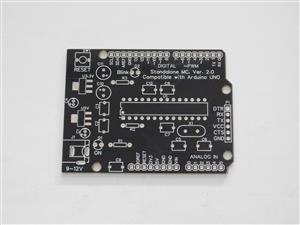

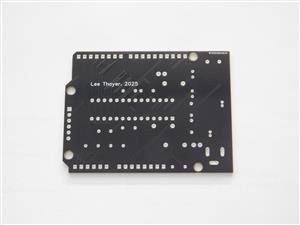

Standalone Arduino UNO Ver. 2
2 Layers PCB 53.3 x 68.6 mm FR-4, 1.6 mm, 1, HASL with lead, Black Solder Mask, White silkscreen
A standalone Arduino UNO that features a header for plugging in a USB to serial module for easy of loading sketches.
17
0
0
Published: Dec 23,2025
Standard PCB
Download Gerber file 1
BOM(Bill of materials)
Other files for Assembly
PCBWay Donate 10% cost To Author
File Last Updated: 2025/12/24 (GMT+8)
File update record
2025-12-2413:05:23
Other files for Assembly are updated.
2025-12-2413:05:23
Parts List (BOM) is updated.
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
