Description
White Rabbit V1.0.0

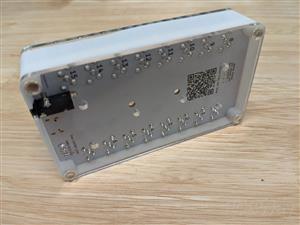

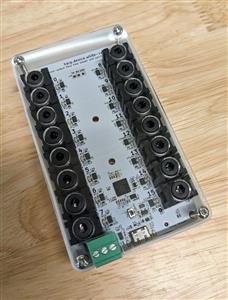

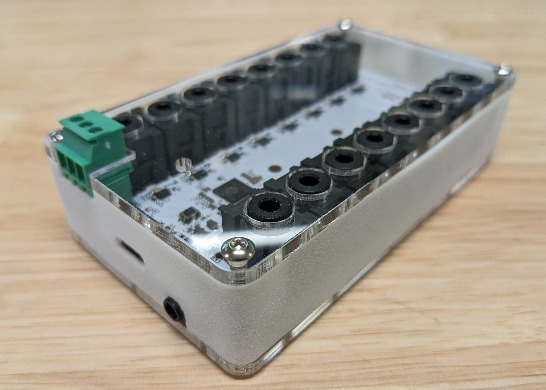

The White-Rabbit is a 16 channel-output time synchronization device for producing Harp Protocol timestamps per the Harp Protocol spec. All devices plugged into this device will receive an identical timestamp, from which they can use to synchronize to this device.
This device can form the basis of a synchronized Harp-based system with up to 16 separate Harp devices.
Code
Github: Firmware
https://github.com/AllenNeuralDynamics/harp.device.white-rabbit
Schematic and Layout
Github: Schematics and Layout Files
https://github.com/AllenNeuralDynamics/harp.device.white-rabbit
CAD-Custom parts and enclosures
Onshape Enclosure Files
https://cad.onshape.com/documents/e58143a7c9dd2652647e9623/w/90e72faf89a0a2a445ca0911/e/b03806c0bc46a31dc8d5c2c5?renderMode=0&uiState=68af4b1bf0c02c138dcc1600
Aug 28,2025
746 views
White Rabbit V1.0.0

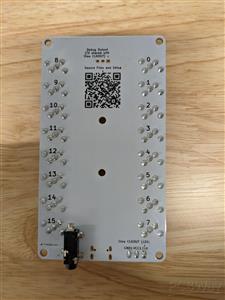

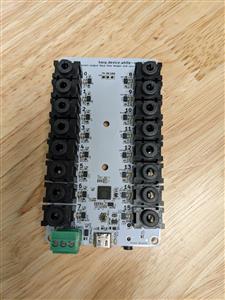

4 Layers PCB 60 x 107 mm FR-4, 1.6 mm, 1, Immersion gold, White Solder Mask, Black silkscreen
